Noklikšķiniet uz modeļa: parādīsies tehniskā informācija, izmēri, piederumi

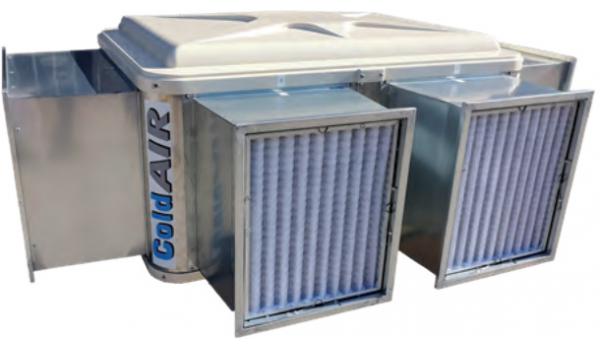

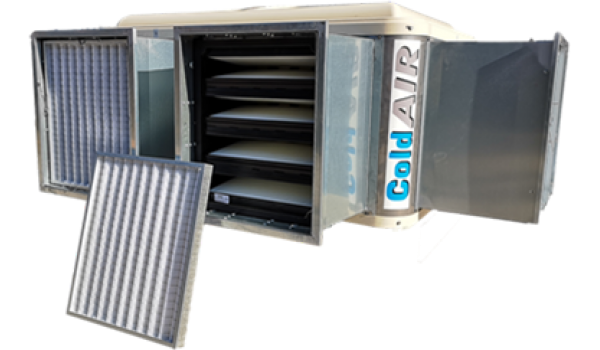

ColdAir F-series - for large space cooling, works on the principle of water evaporation, equipped with high efficiency filters which protects people and production processes from the effects of poor indoor air quality, dust, particles and other contaminants, it is now possible to cool the production departments of food, pharmaceutical, bottling, etc. companies, cooling capacity calculated at 35°C outside air temperature and 50% relative humidity
TC 123 F4 24 kW cooling capacity, high air flow 10000 m³/h (air circulation 14000 m³/h), centrifugal fan, max. electrical power consumption 1.6 kW, three-phase connection, inlet air is filtered with EU4 class cassette filters, for roof mounting - down discharge, weight of empty/full unit 180/210 kg, 2 year WARRANTY
TC 123 F4
24 kW cooling capacity, high air flow 10000 m³/h (air circulation 14000 m³/h), centrifugal fan, max. electrical power consumption 1.6 kW, three-phase connection, inlet air is filtered with EU4 class cassette filters, for roof mounting - down discharge, weight of empty/full unit 180/210 kg, 2 year WARRANTY
TC 123 F9 24 kW cooling capacity, high air flow 10000 m³/h (air circulation 14000 m³/h), centrifugal fan, max. electrical power consumption 1.6 kW, three-phase connection, inlet air is filtered with EU9 class pocket filters, for roof mounting - down discharge, weight of empty/full unit 210/240 kg, 2 year WARRANTY
TC 123 F9
24 kW cooling capacity, high air flow 10000 m³/h (air circulation 14000 m³/h), centrifugal fan, max. electrical power consumption 1.6 kW, three-phase connection, inlet air is filtered with EU9 class pocket filters, for roof mounting - down discharge, weight of empty/full unit 210/240 kg, 2 year WARRANTY
TC 223 F4 49 kW cooling capacity, high air flow 20000 m³/h (air circulation 28000 m³/h), centrifugal fan, max. electrical power consumption 3.2 kW, three-phase connection, inlet air is filtered with EU4 class cassette filters, for roof mounting - down discharge, weight of empty/full unit 270/300 kg, 2 year WARRANTY
TC 223 F4
49 kW cooling capacity, high air flow 20000 m³/h (air circulation 28000 m³/h), centrifugal fan, max. electrical power consumption 3.2 kW, three-phase connection, inlet air is filtered with EU4 class cassette filters, for roof mounting - down discharge, weight of empty/full unit 270/300 kg, 2 year WARRANTY
TC 223 F9 49 kW cooling capacity, high air flow 20000 m³/h (air circulation 28000 m³/h), centrifugal fan, max. electrical power consumption 3.2 kW, three-phase connection, inlet air is filtered with EU9 class pocket filters, for roof mounting - down discharge, weight of empty/full unit 310/340 kg, 2 year WARRANTY
TC 223 F9
49 kW cooling capacity, high air flow 20000 m³/h (air circulation 28000 m³/h), centrifugal fan, max. electrical power consumption 3.2 kW, three-phase connection, inlet air is filtered with EU9 class pocket filters, for roof mounting - down discharge, weight of empty/full unit 310/340 kg, 2 year WARRANTY
ColdAIR F-series evaporative coolers with filters
Manuals 4.3 MB
Bukleti 576 KB
Tehniskie dati 194 KB
SCM850 digital central control panel
Manuals 1.4 MB
Wiring diagram for single units 395 KB
Wiring diagram for groups of units 491 KB
MODBUS protocol for connection to BMS 1.3 MB
