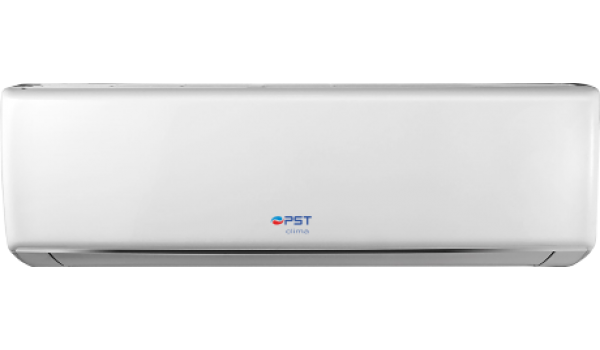

Fan coil, high wall mounted, recommended to install at a height of 2.5 m or higher, EC type tangential fan, data is provided for the fan operating at three speeds at 2/6/10 V, supplied with condensate collection tray, with infra-red remote control, with air filter, RAL9003 white ABS plastic housing, heating capacity is calculated at 50°C water and 20°C air temperature, cooling capacity at 7/12°C water and 27°C air temperature, 2 pipe connection, 3.77/5.10/5.84 kW heating capacity or 2.92/3.86/4.37 kW cooling capacity, air flow 490/710/850 m³/h, sound pressure level 35/42/45 dB(A), max. fan power 29 W, dimensions 970x220xH300 mm, weight 13 kg, 2 year WARRANTY
Vai jūs interesē šis produkts? Sazinieties ar mums:

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Latvijas tirdzniecības pārstāvja vietnieks Saņemt piedāvājumu
Noklikšķiniet uz modeļa: parādīsies tehniskā informācija, izmēri, piederumi
PS-WLE - high wall mounted, recommended to install at a height of 2.5 m or higher, EC type tangential fan, data is provided for the fan operating at three speeds at 2/6/10 V, supplied with condensate collection tray, with infra-red remote control, with air filter, RAL9003 white ABS plastic housing, heating capacity is calculated at 50°C water and 20°C air temperature, cooling capacity at 7/12°C water and 27°C air temperature, 2 pipe connection
PS-WLE 036 1.85/2.52/2.76 kW heating capacity or 1.51/2.01/2.18 kW cooling capacity, air flow 220/320/360 m³/h, sound pressure level 26/29/34 dB(A), max. fan power 15 W, dimensions 850x205xH285 mm, weight 11 kg, 2 year WARRANTY
PS-WLE 036
1.85/2.52/2.76 kW heating capacity or 1.51/2.01/2.18 kW cooling capacity, air flow 220/320/360 m³/h, sound pressure level 26/29/34 dB(A), max. fan power 15 W, dimensions 850x205xH285 mm, weight 11 kg, 2 year WARRANTY
PS-WLE 051 2.03/3.04/3.77 kW heating capacity or 1.59/2.33/2.87 kW cooling capacity, air flow 260/420/560 m³/h, sound pressure level 29/32/39 dB(A), max. fan power 18 W, dimensions 850x205xH285 mm, weight 11 kg, 2 year WARRANTY
PS-WLE 051
2.03/3.04/3.77 kW heating capacity or 1.59/2.33/2.87 kW cooling capacity, air flow 260/420/560 m³/h, sound pressure level 29/32/39 dB(A), max. fan power 18 W, dimensions 850x205xH285 mm, weight 11 kg, 2 year WARRANTY
PS-WLE 085 3.77/5.10/5.84 kW heating capacity or 2.92/3.86/4.37 kW cooling capacity, air flow 490/710/850 m³/h, sound pressure level 35/42/45 dB(A), max. fan power 29 W, dimensions 970x220xH300 mm, weight 13 kg, 2 year WARRANTY
PS-WLE 085
3.77/5.10/5.84 kW heating capacity or 2.92/3.86/4.37 kW cooling capacity, air flow 490/710/850 m³/h, sound pressure level 35/42/45 dB(A), max. fan power 29 W, dimensions 970x220xH300 mm, weight 13 kg, 2 year WARRANTY
PS-WLE/2V - high wall mounted, recommended to install at a height of 2.5 m or higher, EC type tangential fan, data is provided for the fan operating at three speeds at 2/6/10 V, supplied with condensate collection tray, with 2 way valve, with infra-red remote control, with air filter, RAL9003 white ABS plastic housing, heating capacity is calculated at 50°C water and 20°C air temperature, cooling capacity at 7/12°C water and 27°C air temperature, 2 pipe connection
PS-WLE 036/2V 1.85/2.52/2.76 kW heating capacity or 1.51/2.01/2.18 kW cooling capacity, air flow 220/320/360 m³/h, sound pressure level 26/29/34 dB(A), max. fan power 15 W, dimensions 850x205xH285 mm, weight 11.5 kg, 2 year WARRANTY
PS-WLE 036/2V
1.85/2.52/2.76 kW heating capacity or 1.51/2.01/2.18 kW cooling capacity, air flow 220/320/360 m³/h, sound pressure level 26/29/34 dB(A), max. fan power 15 W, dimensions 850x205xH285 mm, weight 11.5 kg, 2 year WARRANTY
PS-WLE 051/2V 2.03/3.04/3.77 kW heating capacity or 1.59/2.33/2.87 kW cooling capacity, air flow 260/420/560 m³/h, sound pressure level 29/32/39 dB(A), max. fan power 18 W, dimensions 850x205xH285 mm, weight 11.5 kg, 2 year WARRANTY
PS-WLE 051/2V
2.03/3.04/3.77 kW heating capacity or 1.59/2.33/2.87 kW cooling capacity, air flow 260/420/560 m³/h, sound pressure level 29/32/39 dB(A), max. fan power 18 W, dimensions 850x205xH285 mm, weight 11.5 kg, 2 year WARRANTY
PS-WLE 085/2V 3.77/5.10/5.84 kW heating capacity or 2.92/3.86/4.37 kW cooling capacity, air flow 490/710/850 m³/h, sound pressure level 35/42/45 dB(A), max. fan power 29 W, dimensions 970x220xH300 mm, weight 13.5 kg, 2 year WARRANTY
PS-WLE 085/2V
3.77/5.10/5.84 kW heating capacity or 2.92/3.86/4.37 kW cooling capacity, air flow 490/710/850 m³/h, sound pressure level 35/42/45 dB(A), max. fan power 29 W, dimensions 970x220xH300 mm, weight 13.5 kg, 2 year WARRANTY
PS-WLE high wall mounted fan coil units
Manuals 1.4 MB
Bukleti 768 KB
Katalogi 950 KB
Wireless controller manual 3.3 MB
Fan coils controllers
Bukleti 8.1 MB
Modelis: PS-WLE 085
Control panels for fan coils
TER.EC.ANA Suitable for 2-pipe and 4-pipe units with EC fans, manual 3 steps fan speed selection, integrated thermostat, manual summer/winter mode, on/off valves control, possibility to connect remote air sensor SM, for use with PS-WLE, PS-FSE, PS-FLE/FLEF/FLEH, PS-CLE/CLES/CLEH, PS-UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DCE/HDCE units
TER.EC.ANA
Suitable for 2-pipe and 4-pipe units with EC fans, manual 3 steps fan speed selection, integrated thermostat, manual summer/winter mode, on/off valves control, possibility to connect remote air sensor SM, for use with PS-WLE, PS-FSE, PS-FLE/FLEF/FLEH, PS-CLE/CLES/CLEH, PS-UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DCE/HDCE units
TER.EC.DIG Suitable for 2-pipe and 4-pipe units with EC fans, LCD display, manual and automatic 3 steps fan speed selection, integrated thermostat, automatic summer/winter mode if used with optional SM sensor, possibility to remotely turn device on/off, possibility to control additional electric heater, on/off valves control, 0-10V modulating valves control, possibility to connect remote air sensor SM, possibility to connect supply hot water detection temperature sensor TM, for use with PS-WLE, PS-FSE, PS-FLE/FLEF/FLEH, PS-CLE/CLES/CLEH, PS-UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DCE/HDCE units
TER.EC.DIG
Suitable for 2-pipe and 4-pipe units with EC fans, LCD display, manual and automatic 3 steps fan speed selection, integrated thermostat, automatic summer/winter mode if used with optional SM sensor, possibility to remotely turn device on/off, possibility to control additional electric heater, on/off valves control, 0-10V modulating valves control, possibility to connect remote air sensor SM, possibility to connect supply hot water detection temperature sensor TM, for use with PS-WLE, PS-FSE, PS-FLE/FLEF/FLEH, PS-CLE/CLES/CLEH, PS-UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DCE/HDCE units
TER.EC.BUS Suitable for 2-pipe and 4-pipe units with EC fans, LCD display, manual and automatic 3 steps fan speed selection, integrated thermostat, automatic summer/winter mode if used with optional TM sensor, programmable weekly calendar, possibility to remotely turn device on/off, possibility to control additional electric heater, on/off valves control, 0-10V modulating valves control, possibility to connect remote air sensor SM, possibility to connect supply hot water detection temperature sensor TM, RS485 connection to BMS via Modbus RTU protocol, for use with PS-WLE, PS-FSE, PS-FLE/FLEF/FLEH, PS-CLE/CLES/CLEH, PS-UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DCE/HDCE units
TER.EC.BUS
Suitable for 2-pipe and 4-pipe units with EC fans, LCD display, manual and automatic 3 steps fan speed selection, integrated thermostat, automatic summer/winter mode if used with optional TM sensor, programmable weekly calendar, possibility to remotely turn device on/off, possibility to control additional electric heater, on/off valves control, 0-10V modulating valves control, possibility to connect remote air sensor SM, possibility to connect supply hot water detection temperature sensor TM, RS485 connection to BMS via Modbus RTU protocol, for use with PS-WLE, PS-FSE, PS-FLE/FLEF/FLEH, PS-CLE/CLES/CLEH, PS-UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DCE/HDCE units
TER.EC.TOUCH Suitable for 2-pipe units with EC fans, touch screen, manual and automatic 3 steps fan speed selection, integrated thermostat, manual summer/winter mode, programmable weekly calendar, on/off valves control, possibility to connect remote air sensor SM, Wi-Fi connection for possibility to control the device remotely through the app for smart Android / IOS devices, for use with PS-WLE, PS-FSE, PS-FLE/FLEF/FLEH 2T, PS-CLE/CLES/CLEH 2T, PS-UWLE/UWLEF/UWLEV/UWLES/UWLED 2T, PS-DCE/HDCE 2T units
TER.EC.TOUCH
Suitable for 2-pipe units with EC fans, touch screen, manual and automatic 3 steps fan speed selection, integrated thermostat, manual summer/winter mode, programmable weekly calendar, on/off valves control, possibility to connect remote air sensor SM, Wi-Fi connection for possibility to control the device remotely through the app for smart Android / IOS devices, for use with PS-WLE, PS-FSE, PS-FLE/FLEF/FLEH 2T, PS-CLE/CLES/CLEH 2T, PS-UWLE/UWLEF/UWLEV/UWLES/UWLED 2T, PS-DCE/HDCE 2T units
Accessories for fan coils controls
PRE.MOR.WLE Electric terminal board arrangement for wall thermostat connection inside PS-WLE fan coil unit
PRE.MOR.WLE
Electric terminal board arrangement for wall thermostat connection inside PS-WLE fan coil unit
Casing boxes for additional accessories installation
PS085-BOXE Additional back case box for 085 size PS-WLE fan coil units, used for installation of VAL.2V.12 2-way or VAL.3V.12 3-way valve, POM.CON.20 condensate pump and other accessories, with this box device is pulled back from the wall by an additional 7 cm
PS085-BOXE
Additional back case box for 085 size PS-WLE fan coil units, used for installation of VAL.2V.12 2-way or VAL.3V.12 3-way valve, POM.CON.20 condensate pump and other accessories, with this box device is pulled back from the wall by an additional 7 cm
Water valves
ATT.230 On/Off actuator for water valve, powered by 230 V
ATT.230
On/Off actuator for water valve, powered by 230 V
ATT.MOD Modulating by 0-10 V signal actuator for water valve
ATT.MOD
Modulating by 0-10 V signal actuator for water valve
VAL.2V.12 2-way water valve for PS-WLE fan coil units with PS036-BOXE / PS085-BOXE casing box for additional accessories installation, 1/2" connection
VAL.2V.12
2-way water valve for PS-WLE fan coil units with PS036-BOXE / PS085-BOXE casing box for additional accessories installation, 1/2" connection
VAL.3V.12 3-way water valve for PS-WLE fan coil units with PS036-BOXE / PS085-BOXE casing box for additional accessories installation, 1/2" connection
VAL.3V.12
3-way water valve for PS-WLE fan coil units with PS036-BOXE / PS085-BOXE casing box for additional accessories installation, 1/2" connection
Condensate drain pumps
POM.CON.20 Condensate drain pump for PS-WLE, PS-FL/FLF/FLH/FLE/FLEF/FLEH, PS-UWLED, PS-DC/DCE/HDC/HDCE fan coil units, flow rate 20 l/h
POM.CON.20
Condensate drain pump for PS-WLE, PS-FL/FLF/FLH/FLE/FLEF/FLEH, PS-UWLED, PS-DC/DCE/HDC/HDCE fan coil units, flow rate 20 l/h
Painting in non-standard colors
WL.RAL Painting of casing in non-standard RAL color for PS-WLE fan coil units
WL.RAL
Painting of casing in non-standard RAL color for PS-WLE fan coil units
