Gas boiler - Caldaria 55.1 Condensing+ | Robur

Izvēlieties produkta modeli:

Gas boiler, condensing, suitable for outdoor installation, smooth operation of the device up to -25°C air temperature, for wall-hung installation, equipped with water pump and expansion tank, 5.0-50.0 kW modulating heat input, efficiency is from 98.4% at 80/60°C water temperature to 106.8% at 50/30°C water temperature, max. gas (G20) consumption 5.29 m³/h, electrical power absorption 0.24 kW, weight 54 kg, 2 year WARRANTY
Vai jūs interesē šis produkts? Sazinieties ar mums:

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Latvijas tirdzniecības pārstāvja vietnieks Saņemt piedāvājumu
Noklikšķiniet uz modeļa: parādīsies tehniskā informācija, izmēri, piederumi
Caldaria Condensing+ - condensing, suitable for outdoor installation, smooth operation of the device up to -25°C air temperature, for wall-hung installation, equipped with water pump and expansion tank

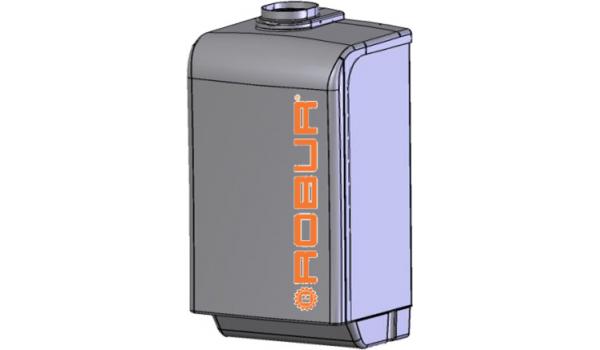

Caldaria 35 Condensing+ 4.1-34.0 kW modulating heat input, efficiency is from 98.1% at 80/60°C water temperature to 106.4% at 50/30°C water temperature, max. gas (G20) consumption 3.60 m³/h, electrical power absorption 0.13 kW, weight 44 kg, 2 year WARRANTY
Caldaria 35 Condensing+
4.1-34.0 kW modulating heat input, efficiency is from 98.1% at 80/60°C water temperature to 106.4% at 50/30°C water temperature, max. gas (G20) consumption 3.60 m³/h, electrical power absorption 0.13 kW, weight 44 kg, 2 year WARRANTY

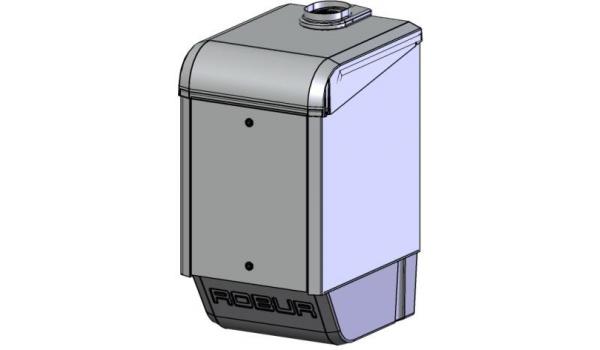

Caldaria 55.1 Condensing+ 5.0-50.0 kW modulating heat input, efficiency is from 98.4% at 80/60°C water temperature to 106.8% at 50/30°C water temperature, max. gas (G20) consumption 5.29 m³/h, electrical power absorption 0.24 kW, weight 54 kg, 2 year WARRANTY
Caldaria 55.1 Condensing+
5.0-50.0 kW modulating heat input, efficiency is from 98.4% at 80/60°C water temperature to 106.8% at 50/30°C water temperature, max. gas (G20) consumption 5.29 m³/h, electrical power absorption 0.24 kW, weight 54 kg, 2 year WARRANTY

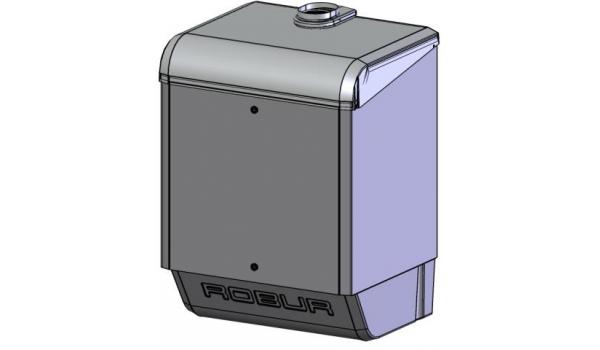

Caldaria 100.2 Condensing+ 5.0-99.8 kW modulating heat input, efficiency is from 98.3% at 80/60°C water temperature to 106.8% at 50/30°C water temperature, max. gas (G20) consumption 10.58 m³/h, electrical power absorption 0.48 kW, weight 90 kg, 2 year WARRANTY
Caldaria 100.2 Condensing+
5.0-99.8 kW modulating heat input, efficiency is from 98.3% at 80/60°C water temperature to 106.8% at 50/30°C water temperature, max. gas (G20) consumption 10.58 m³/h, electrical power absorption 0.48 kW, weight 90 kg, 2 year WARRANTY
Modelis: Caldaria 55.1 Condensing+
Vispārējie dati
Energy class
ErP
A
Nominal heat output (min - max)
kW
5,0 - 50,0
Nominal heating capacity while working on 100% of the load at 80/60°C delivery/return water temperatures
kW
49,2
Efficiency while working on 100% of the load at 80/60°C delivery/return water temperatures
%
98,4
Efficiency while working on 100% of the load at 50/30°C delivery/return water temperatures
%
106,8
Heat loss to jacket in operation / to flue in operation / with burner off
%
0,10 / 2,10 / 0,05
Maks. dabasgāzes (G20) patēriņš
m³/st.
5,29
Maks. sašķidrinātas gāzes (G30 - BUTĀNS) patēriņš
kg/h
3,94
Maks. sašķidrinātas gāzes (G31 - PROPĀNS) patēriņš
kg/h
3,88
Maximum how water delivery temperature
°C
80
Instalācijas dati
Elektrības padeve
V/Hz
230/50
Enerģijas patēriņš
W
240
IP aizsardzības klase
X5D
Maks. darba spiediens
bar
3,0
Ūdens cauruļu pievienošana
Ø "
M 1 1/4
Gāzes savienojums
Ø "
M 3/4
Darba vides temperatūras intervāls
°C
-25 / +60
Instalācijas veids
B23P, B33
Maximum flow flue condensate
l/h
5,0
Exhaust air flue diameter
mm Ø
80
Flue gas exhaust residual head
Pa
100
Maximum equivalent length of exhaust duct
m
14
NOx emission class
6
Water content inside the apparatus
l
9
Expansion tank volume
l
10
Circulating pump residual pressure head at nominal flow rate
m w.c.
5,1
Circulating pump nominal flow at the maximum available head
l/h
2150
Izmēri
Platums
mm
480
Dziļums
mm
600
Augstums
mm
869
Svars
kg
54

Izmēri

Modelis: Caldaria 55.1 Condensing+
Izmēri
Caldaria Condensing+ external wall-hung gas boilers
Manuals 20.4 MB
Atbilstības deklarācijas 417 KB
Bukleti 2 MB
Presentation 2.4 MB
OCDS006 control panel for Caldaria Condensing+ boilers
Manuals 4.2 MB
ODSP039 cascade controller for Caldaria Condensing+ boilers
Manuals 8.4 MB
Modelis: Caldaria 55.1 Condensing+
Additional accessories for Caldaria Condensing+ boilers
OCDS006 Digital control panel for Caldaria Condensing+ boilers, weekly heating program, two temperature levels (day/night)
OCDS006
Digital control panel for Caldaria Condensing+ boilers, weekly heating program, two temperature levels (day/night)
O-DSP039 Cascade controller for Caldaria Condensing+ boilers, manages up to 8 boilers, up to 4 pumps (2x delivery, DHW and DHW recirculation), up to 2 mixing valves, up to 4 water probes (manifold, 2 mixed circuits and DHW buffer tank), variable temperature heating based on the time programming, all boilers in cascade requires O-DSP040 OT/Modbus interface card (Caldaria 100.2 Condensing+ boilers have this interface card by default)
O-DSP039
Cascade controller for Caldaria Condensing+ boilers, manages up to 8 boilers, up to 4 pumps (2x delivery, DHW and DHW recirculation), up to 2 mixing valves, up to 4 water probes (manifold, 2 mixed circuits and DHW buffer tank), variable temperature heating based on the time programming, all boilers in cascade requires O-DSP040 OT/Modbus interface card (Caldaria 100.2 Condensing+ boilers have this interface card by default)
O-DSP040 OT/Modbus interface card for Caldaria Condensing+ boilers, required for each boiler managed by O-DSP039 cascade controller (Caldaria 100.2 Condensing+ boilers have this interface card by default)
O-DSP040
OT/Modbus interface card for Caldaria Condensing+ boilers, required for each boiler managed by O-DSP039 cascade controller (Caldaria 100.2 Condensing+ boilers have this interface card by default)
O-SND009 Outdoor temperature probe for Caldaria Condensing+ boilers, allows to obtain a variable delivery temperature according to the outdoor temperature, parameters of the climatic curve are set on the control panel of the boiler or on the O-DSP039 cascade controller, to be connected to the first boiler of the cascade
O-SND009
Outdoor temperature probe for Caldaria Condensing+ boilers, allows to obtain a variable delivery temperature according to the outdoor temperature, parameters of the climatic curve are set on the control panel of the boiler or on the O-DSP039 cascade controller, to be connected to the first boiler of the cascade
O-SND010 Manifold temperature probe for Caldaria Condensing+ boilers, to be connected to the O-DSP039 cascade controller
O-SND010
Manifold temperature probe for Caldaria Condensing+ boilers, to be connected to the O-DSP039 cascade controller
O-SND011 DHW buffer tank probe for Caldaria Condensing+ boilers, allows managing the temperature in the remote DHW buffer tank by activating and deactivating the DHW request accordingly, parameters of the DHW service are set on the control panel of the boiler or on the O-DSP039 cascade controller, this device is an alternative to the use of a simple DHW buffer tank thermostat, to be connected to the first boiler of the cascade
O-SND011
DHW buffer tank probe for Caldaria Condensing+ boilers, allows managing the temperature in the remote DHW buffer tank by activating and deactivating the DHW request accordingly, parameters of the DHW service are set on the control panel of the boiler or on the O-DSP039 cascade controller, this device is an alternative to the use of a simple DHW buffer tank thermostat, to be connected to the first boiler of the cascade
OTRM031 Vertical flue outlet terminal, 80 mm diameter, for Caldaria 35/55.1 Condensing+ boilers
OTRM031
Vertical flue outlet terminal, 80 mm diameter, for Caldaria 35/55.1 Condensing+ boilers
Gas conversion kits
O-CMG045 Gas conversion kit for Caldaria 55.1 Condensing+ boilers to work on LPG
O-CMG045
Gas conversion kit for Caldaria 55.1 Condensing+ boilers to work on LPG
O-CMG046 Gas conversion kit for Caldaria 55.1 Condensing+ boilers to work on natural gas
O-CMG046
Gas conversion kit for Caldaria 55.1 Condensing+ boilers to work on natural gas
