Gas boiler - AY 50 | Robur

Izvēlieties produkta modeli:

Gas boiler, condesing, for outdoor installation on a flat surface, smooth operation of the device up to -25°C air temperature, used for heating of premises and production of hot water up to 88°C, 5.0-50.0 kW modulating heat input, efficiency is from 98.4% at 80/60°C water temperature to 106.8% at 50/30°C water temperature, max. gas (G20) consumption 5.29 m³/h, electrical power absorption 0.25 kW, weight 87 kg, 2 year WARRANTY
Vai jūs interesē šis produkts? Sazinieties ar mums:

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Latvijas tirdzniecības pārstāvja vietnieks Saņemt piedāvājumu
Noklikšķiniet uz modeļa: parādīsies tehniskā informācija, izmēri, piederumi
AY - condesing, for outdoor installation on a flat surface, smooth operation of the device up to -25°C air temperature, used for heating of premises and production of hot water up to 88°C

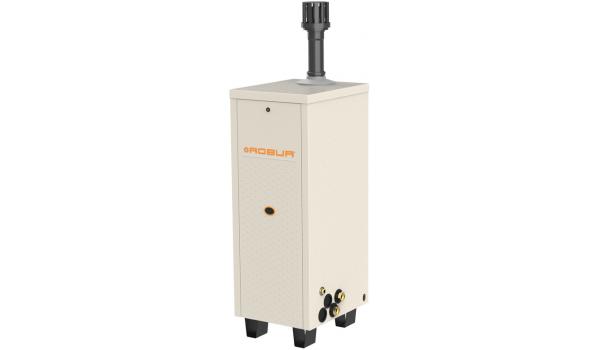

AY 35 4.1-34.0 kW modulating heat input, efficiency is from 98.2% at 80/60°C water temperature to 106.4% at 50/30°C water temperature, max. gas (G20) consumption 3.60 m³/h, electrical power absorption 0.22 kW, weight 77 kg, 2 year WARRANTY
AY 35
4.1-34.0 kW modulating heat input, efficiency is from 98.2% at 80/60°C water temperature to 106.4% at 50/30°C water temperature, max. gas (G20) consumption 3.60 m³/h, electrical power absorption 0.22 kW, weight 77 kg, 2 year WARRANTY
AY 50 5.0-50.0 kW modulating heat input, efficiency is from 98.4% at 80/60°C water temperature to 106.8% at 50/30°C water temperature, max. gas (G20) consumption 5.29 m³/h, electrical power absorption 0.25 kW, weight 87 kg, 2 year WARRANTY
AY 50
5.0-50.0 kW modulating heat input, efficiency is from 98.4% at 80/60°C water temperature to 106.8% at 50/30°C water temperature, max. gas (G20) consumption 5.29 m³/h, electrical power absorption 0.25 kW, weight 87 kg, 2 year WARRANTY

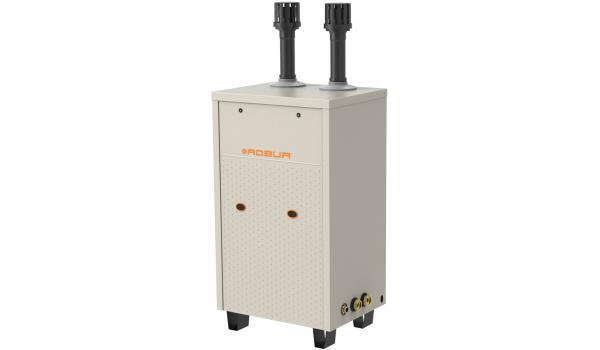

AY 100 5.0-99.8 kW modulating heat input, efficiency is from 98.5% at 80/60°C water temperature to 106.8% at 50/30°C water temperature, max. gas (G20) consumption 10.58 m³/h, electrical power absorption 0.49 kW, weight 131 kg, 2 year WARRANTY
AY 100
5.0-99.8 kW modulating heat input, efficiency is from 98.5% at 80/60°C water temperature to 106.8% at 50/30°C water temperature, max. gas (G20) consumption 10.58 m³/h, electrical power absorption 0.49 kW, weight 131 kg, 2 year WARRANTY
Modelis: AY 50
Vispārējie dati
Nominal heat output (min - max)
kW
5,0 - 50,0
Nominal heating capacity while working on 100% of the load at 80/60°C delivery/return water temperatures
kW
49,2
Efficiency while working on 100% of the load at 80/60°C delivery/return water temperatures
%
98,4
Efficiency while working on 100% of the load at 50/30°C delivery/return water temperatures
%
106,8
Heat loss to jacket in operation / to flue in operation / with burner off
%
0,10 / 2,10 / 0,05
Maks. dabasgāzes (G20) patēriņš
m³/st.
5,29
Maks. sašķidrinātas gāzes (G30 - BUTĀNS) patēriņš
kg/h
3,94
Maks. sašķidrinātas gāzes (G31 - PROPĀNS) patēriņš
kg/h
3,88
Maximum how water delivery temperature
°C
88
Heating water flow (minimal - nominal)
l/h
1500 - 2350
Pressure drop in heating mode at nominal water flow
bar
0,57
Instalācijas dati
Elektrības padeve
V/Hz
230/50
Enerģijas patēriņš
W
250
IP aizsardzības klase
X5D
Maks. darba spiediens
bar
3,0
Ūdens cauruļu pievienošana
Ø "
F 1¼
Gāzes savienojums
Ø "
M ¾
Darba vides temperatūras intervāls
°C
-25 / +45
Instalācijas veids
B23, B23P, B33, B53
Maximum flow flue condensate
l/h
5,0
Exhaust air flue diameter
mm Ø
80
Flue gas exhaust residual head
Pa
100
Maximum equivalent length of exhaust duct
m
14
NOx emission class
6
Water content inside the apparatus
l
11
Expansion tank volume
l
10
Circulating pump nominal flow at the maximum available head
bar
0,44
Circulating pump nominal flow at the maximum available head
l/h
2350
Izmēri
Platums
mm
465
Dziļums
mm
575
Augstums
mm
1284
Svars ierīce uzpildīta ar ūdeni
kg
87

Izmēri

Modelis: AY 50
Izmēri
AY external free standing condensing gas boilers
Manuals 12.6 MB
Atbilstības deklarācijas 1.3 MB
DDC control panel
Manuals 12.4 MB
Bukleti 795 KB
MODBUS protocol for connection to BMS 690 KB
RB100 (Robur Box 100) control interface
Manuals 3.1 MB
RB200 (Robur Box 200) control interface
Manuals 3.1 MB
Modelis: AY 50
Additional accessories for GAHP gas absorption heat pumps and AY boilers
OCRM009 Control panel DDC for configuring AY boilers, RTY links of those boilers, gas heat pumps
OCRM009
Control panel DDC for configuring AY boilers, RTY links of those boilers, gas heat pumps
ODSP014 RB100 (Robur Box 100) control system for Robur gas absorption heat pumps fitted with Direct Digital Control (DDC). Main functions: heating, DHW and cooling mode management; 3-way valve management for switching heating and DHW; control and error alarm.
ODSP014
RB100 (Robur Box 100) control system for Robur gas absorption heat pumps fitted with Direct Digital Control (DDC). Main functions: heating, DHW and cooling mode management; 3-way valve management for switching heating and DHW; control and error alarm.
ODSP023 RB200 (Robur Box 200) control system for Robur gas absorption heat pumps fitted with Direct Digital Control (DDC). Main functions: integration of third parties appliances, i.e. in case of retrofitting of existing systems; control of water circulation of primary and secondary circuits; 3-way valve management for switching heating and DHW; control and error alarm.
ODSP023
RB200 (Robur Box 200) control system for Robur gas absorption heat pumps fitted with Direct Digital Control (DDC). Main functions: integration of third parties appliances, i.e. in case of retrofitting of existing systems; control of water circulation of primary and secondary circuits; 3-way valve management for switching heating and DHW; control and error alarm.
ODSP033 Roburberry microcomputer for remote monitoring and control of devices, connects to the DDC control panel via RS485 port
ODSP033
Roburberry microcomputer for remote monitoring and control of devices, connects to the DDC control panel via RS485 port
ODSP052 GSM modem for Roburberry microcomputer
ODSP052
GSM modem for Roburberry microcomputer
RBCLOUD2Y 2-year free connection of the Roburberry microcomputer to the Robur Cloud remote device monitoring and control system
RBCLOUD2Y
2-year free connection of the Roburberry microcomputer to the Robur Cloud remote device monitoring and control system
