Gaisa dzesētājs - FPAK-I | Impresind

Izvēlieties produkta modeli:

Gaisa dzesētājs, for cooling, purification and ventilation of professional kitchens and food industries, works on the principle of water evaporation, 5 fan speeds allow the supply air volume to be adapted to the extract air volume via industrial kitchen hoods, control panel is mounted directly on the unit, cooler is equipped with a new technology evaporative pads named HEALTH that reduces the percentages of NO, NOx and other inorganic pollutants and also reduces the percentage values of fine dust in the air, machine structure is in stainless steel, cooling capacity calculated at 35°C outside air temperature and 50% relative humidity, 12 kW cooling capacity, air flow from 1000 m³/h to 5000 m³/h (max. air circulation 7500 m³/h), axial fan, max. electrical power consumption 0.45 kW, single-phase connection, for wall or window mounting - side discharge, weight of empty/full unit 55/75 kg, 2 year WARRANTY
Vai jūs interesē šis produkts? Sazinieties ar mums:

Roberts Priekulis

LV, RU, EN
+371 286 22395

Tirdzniecības pārstāvis Latvijā Saņemt piedāvājumu
Noklikšķiniet uz modeļa: parādīsies tehniskā informācija, izmēri, piederumi
ColdAir K-series - for cooling, purification and ventilation of professional kitchens and food industries, works on the principle of water evaporation, 5 fan speeds allow the supply air volume to be adapted to the extract air volume via industrial kitchen hoods, control panel is mounted directly on the unit, cooler is equipped with a new technology evaporative pads named HEALTH that reduces the percentages of NO, NOx and other inorganic pollutants and also reduces the percentage values of fine dust in the air, machine structure is in stainless steel, cooling capacity calculated at 35°C outside air temperature and 50% relative humidity
FPAK-I 12 kW cooling capacity, air flow from 1000 m³/h to 5000 m³/h (max. air circulation 7500 m³/h), axial fan, max. electrical power consumption 0.45 kW, single-phase connection, for wall or window mounting - side discharge, weight of empty/full unit 55/75 kg, 2 year WARRANTY
FPAK-I
12 kW cooling capacity, air flow from 1000 m³/h to 5000 m³/h (max. air circulation 7500 m³/h), axial fan, max. electrical power consumption 0.45 kW, single-phase connection, for wall or window mounting - side discharge, weight of empty/full unit 55/75 kg, 2 year WARRANTY
Modelis: FPAK-I
Vispārējie dati
Cooling capacity at 35°C outside air temperature and 50% relative humidity
kW
12
Maks. gaisa cirkulācija
m³/h
7500
Gaisa plūsma
m³/st.
1000 - 5000
Water consumption at 33°C external air temperature and 60% relative humidity
l/h
13
Ventilatora dati
Ventilatora tips
Axial
Ātrumi
5
Evaporative cooling pads data
Saturation efficiency
%
88
Instalācijas dati
Elektrības padeve
V/Hz
230/50
Enerģijas patēriņš
kW
0,45
Strāvas patēriņš
A
3
Ūdens cauruļu pievienošana
Ø "
¾
Ūdens izvade
Ø mm
22
Gaisa izpūšana
Side
Citi dati
Ūdens tilpums
l
20
Vadība
Control panel mounted directly on the unit casing

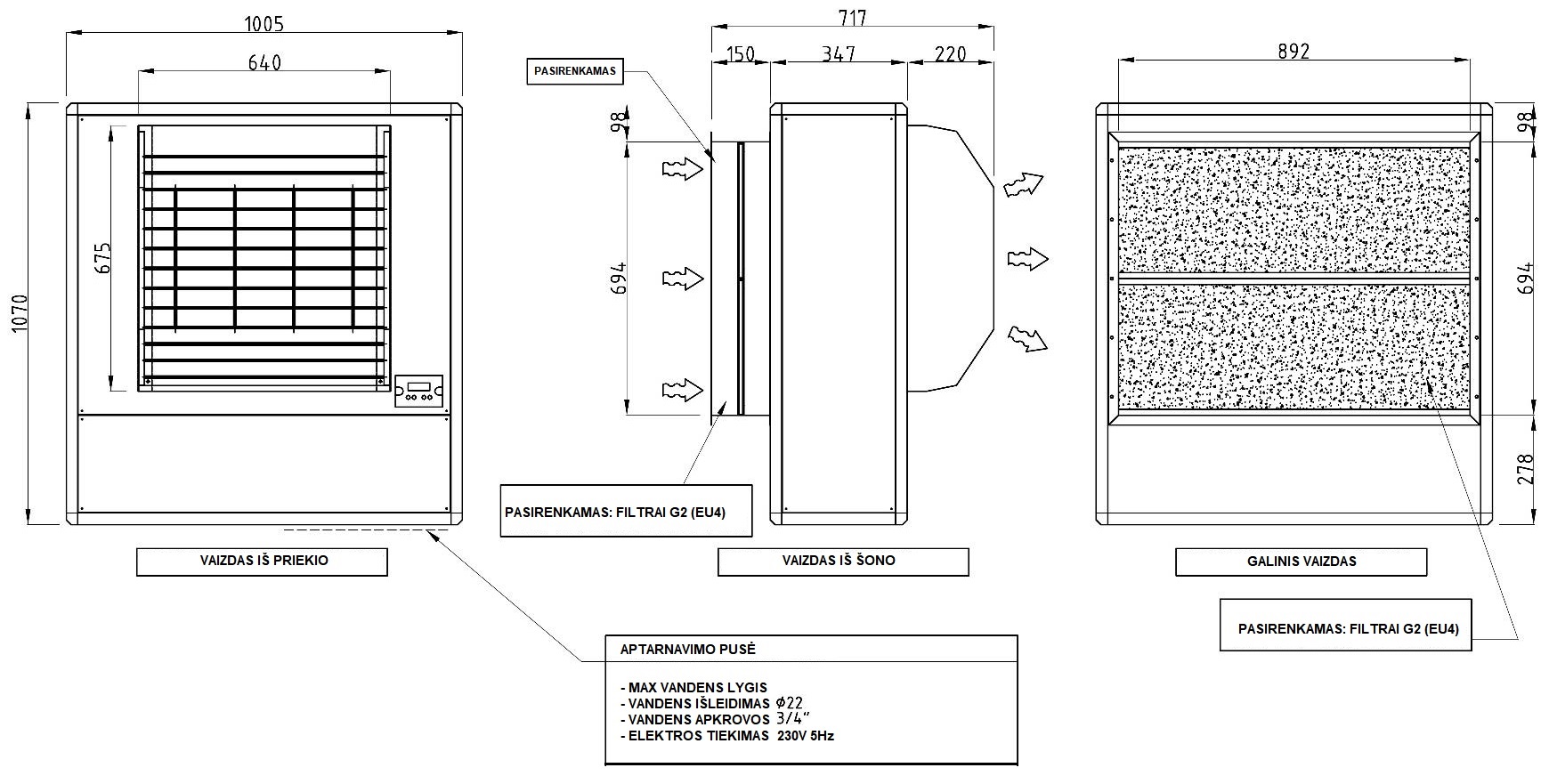

Izmēri
Platums
mm
1005
Dziļums
mm
347
Augstums
mm
1070
Svars
kg
55
Svars ierīce uzpildīta ar ūdeni
kg
75

Izmēri

Modelis: FPAK-I
Izmēri
ColdAIR K-series evaporative coolers for kitchens
Manuals 2 MB
Bukleti 783 KB
Modelis: FPAK-I
Additional accessories for ColdAir K-series evaporative coolers
C102.209 Inlet air filtration kit for FPAK-I evaporative cooler, consists of filters holder section C102.206 and 2 pcs. of filters C102.207, this kit is pre-installed on the unit in the factory so can be ordered only together with new cooler
C102.209
Inlet air filtration kit for FPAK-I evaporative cooler, consists of filters holder section C102.206 and 2 pcs. of filters C102.207, this kit is pre-installed on the unit in the factory so can be ordered only together with new cooler
C102.206 Inlet air filters holder section for FPAK-I for air coolers, without filters, supplied not mounted on the unit
C102.206
Inlet air filters holder section for FPAK-I for air coolers, without filters, supplied not mounted on the unit
C102.207 Inlet air filter for FPAK-I air cooler which has C102.206 filters holder section, single cooler uses 2 pcs. of filters
C102.207
Inlet air filter for FPAK-I air cooler which has C102.206 filters holder section, single cooler uses 2 pcs. of filters
C102.208 Wall support kit for FPAK-I units
C102.208
Wall support kit for FPAK-I units
