Ducted fan - VIE/A 1408 T | Aspirnova

Name: Ducted fan - VIE/A 1408 T | Aspirnova
Brand: Aspirnova
Availability: PreOrder

Izvēlieties produkta modeli:

Modelis:

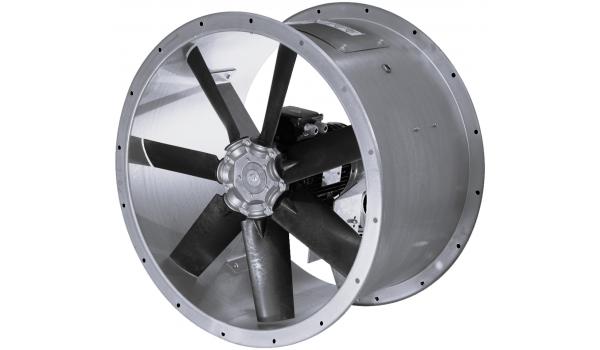

Ducted fan, axial, with a long double flanged cylindrical casing in galvanized steel, impeller blades in glass reinforced polypropylene with an airfoil profile and aluminum hub, air flow directed from the motor to the impeller, allowed extracted air temperature range from -20ºC to +50ºC, IP55/F protection / insulation class, 89000 m³/h air flow, max. static pressure 185 Pa, power consumption 7500 W, fan rotation speed 700 rpm, weight 410-580 kg, three-phase connection, 2 year WARRANTY

Ražotājs:

Vai jūs interesē šis produkts? Sazinieties ar mums:

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Latvijas tirdzniecības pārstāvja vietnieks Saņemt piedāvājumu

Noklikšķiniet uz modeļa: parādīsies tehniskā informācija, izmēri, piederumi

VIE/A - axial, with a long double flanged cylindrical casing in galvanized steel, impeller blades in glass reinforced polypropylene with an airfoil profile and aluminum hub, air flow directed from the motor to the impeller, allowed extracted air temperature range from -20ºC to +50ºC, IP55/F protection / insulation class
	VIE/A 312 M	2820 m³/h air flow, max. static pressure 230 Pa, power consumption 250 W, fan rotation speed 2800 rpm, weight 26 kg, one-phase connection, 2 year WARRANTY
		VIE/A 312 M
		2820 m³/h air flow, max. static pressure 230 Pa, power consumption 250 W, fan rotation speed 2800 rpm, weight 26 kg, one-phase connection, 2 year WARRANTY
	VIE/A 314 M	2380 m³/h air flow, max. static pressure 70 Pa, power consumption 120 W, fan rotation speed 1400 rpm, weight 26 kg, one-phase connection, 2 year WARRANTY
		VIE/A 314 M
		2380 m³/h air flow, max. static pressure 70 Pa, power consumption 120 W, fan rotation speed 1400 rpm, weight 26 kg, one-phase connection, 2 year WARRANTY
	VIE/A 312 T	3150 m³/h air flow, max. static pressure 250 Pa, power consumption 250 W, fan rotation speed 2800 rpm, weight 26 kg, three-phase connection, 2 year WARRANTY
		VIE/A 312 T
		3150 m³/h air flow, max. static pressure 250 Pa, power consumption 250 W, fan rotation speed 2800 rpm, weight 26 kg, three-phase connection, 2 year WARRANTY
	VIE/A 314 T	2380 m³/h air flow, max. static pressure 70 Pa, power consumption 120 W, fan rotation speed 1400 rpm, weight 26 kg, three-phase connection, 2 year WARRANTY
		VIE/A 314 T
		2380 m³/h air flow, max. static pressure 70 Pa, power consumption 120 W, fan rotation speed 1400 rpm, weight 26 kg, three-phase connection, 2 year WARRANTY
	VIE/A 352 M	6100 m³/h air flow, max. static pressure 390 Pa, power consumption 1100 W, fan rotation speed 2800 rpm, weight 36-40 kg, one-phase connection, 2 year WARRANTY
		VIE/A 352 M
		6100 m³/h air flow, max. static pressure 390 Pa, power consumption 1100 W, fan rotation speed 2800 rpm, weight 36-40 kg, one-phase connection, 2 year WARRANTY
	VIE/A 354 M	3300 m³/h air flow, max. static pressure 95 Pa, power consumption 180 W, fan rotation speed 1400 rpm, weight 36-40 kg, one-phase connection, 2 year WARRANTY
		VIE/A 354 M
		3300 m³/h air flow, max. static pressure 95 Pa, power consumption 180 W, fan rotation speed 1400 rpm, weight 36-40 kg, one-phase connection, 2 year WARRANTY
	VIE/A 352 T	6100 m³/h air flow, max. static pressure 425 Pa, power consumption 1100 W, fan rotation speed 2800 rpm, weight 36-40 kg, three-phase connection, 2 year WARRANTY
		VIE/A 352 T
		6100 m³/h air flow, max. static pressure 425 Pa, power consumption 1100 W, fan rotation speed 2800 rpm, weight 36-40 kg, three-phase connection, 2 year WARRANTY
	VIE/A 354 T	3300 m³/h air flow, max. static pressure 95 Pa, power consumption 180 W, fan rotation speed 1400 rpm, weight 36-40 kg, three-phase connection, 2 year WARRANTY
		VIE/A 354 T
		3300 m³/h air flow, max. static pressure 95 Pa, power consumption 180 W, fan rotation speed 1400 rpm, weight 36-40 kg, three-phase connection, 2 year WARRANTY
	VIE/A 352/4 T	Two speed motor, 6100/3050 m³/h air flow, max. static pressure 390/70 Pa, power consumption 960/250 W, fan rotation speed 2800/1400 rpm, weight 36-40 kg, three-phase connection, 2 year WARRANTY
		VIE/A 352/4 T
		Two speed motor, 6100/3050 m³/h air flow, max. static pressure 390/70 Pa, power consumption 960/250 W, fan rotation speed 2800/1400 rpm, weight 36-40 kg, three-phase connection, 2 year WARRANTY
	VIE/A 404 M	4500 m³/h air flow, max. static pressure 110 Pa, power consumption 250 W, fan rotation speed 1400 rpm, weight 42-49 kg, one-phase connection, 2 year WARRANTY
		VIE/A 404 M
		4500 m³/h air flow, max. static pressure 110 Pa, power consumption 250 W, fan rotation speed 1400 rpm, weight 42-49 kg, one-phase connection, 2 year WARRANTY
	VIE/A 402 T	9400 m³/h air flow, max. static pressure 530 Pa, power consumption 1500 W, fan rotation speed 2800 rpm, weight 42-49 kg, three-phase connection, 2 year WARRANTY
		VIE/A 402 T
		9400 m³/h air flow, max. static pressure 530 Pa, power consumption 1500 W, fan rotation speed 2800 rpm, weight 42-49 kg, three-phase connection, 2 year WARRANTY
	VIE/A 404 T	4400 m³/h air flow, max. static pressure 130 Pa, power consumption 180 W, fan rotation speed 1400 rpm, weight 42-49 kg, three-phase connection, 2 year WARRANTY
		VIE/A 404 T
		4400 m³/h air flow, max. static pressure 130 Pa, power consumption 180 W, fan rotation speed 1400 rpm, weight 42-49 kg, three-phase connection, 2 year WARRANTY
	VIE/A 406 T	2850 m³/h air flow, max. static pressure 50 Pa, power consumption 180 W, fan rotation speed 900 rpm, weight 42-49 kg, three-phase connection, 2 year WARRANTY
		VIE/A 406 T
		2850 m³/h air flow, max. static pressure 50 Pa, power consumption 180 W, fan rotation speed 900 rpm, weight 42-49 kg, three-phase connection, 2 year WARRANTY
	VIE/A 402/4 T	Two speed motor, 9700/4850 m³/h air flow, max. static pressure 500/110 Pa, power consumption 2000/500 W, fan rotation speed 2800/1400 rpm, weight 42-49 kg, three-phase connection, 2 year WARRANTY
		VIE/A 402/4 T
		Two speed motor, 9700/4850 m³/h air flow, max. static pressure 500/110 Pa, power consumption 2000/500 W, fan rotation speed 2800/1400 rpm, weight 42-49 kg, three-phase connection, 2 year WARRANTY
	VIE/A 404/6 T	Two speed motor, 4400/2850 m³/h air flow, max. static pressure 130/50 Pa, power consumption 260/90 W, fan rotation speed 1400/900 rpm, weight 42-49 kg, three-phase connection, 2 year WARRANTY
		VIE/A 404/6 T
		Two speed motor, 4400/2850 m³/h air flow, max. static pressure 130/50 Pa, power consumption 260/90 W, fan rotation speed 1400/900 rpm, weight 42-49 kg, three-phase connection, 2 year WARRANTY
	VIE/A 454 M	7050 m³/h air flow, max. static pressure 120 Pa, power consumption 370 W, fan rotation speed 1400 rpm, weight 54-62 kg, one-phase connection, 2 year WARRANTY
		VIE/A 454 M
		7050 m³/h air flow, max. static pressure 120 Pa, power consumption 370 W, fan rotation speed 1400 rpm, weight 54-62 kg, one-phase connection, 2 year WARRANTY
	VIE/A 452 T	13100 m³/h air flow, max. static pressure 575 Pa, power consumption 3000 W, fan rotation speed 2800 rpm, weight 54-62 kg, three-phase connection, 2 year WARRANTY
		VIE/A 452 T
		13100 m³/h air flow, max. static pressure 575 Pa, power consumption 3000 W, fan rotation speed 2800 rpm, weight 54-62 kg, three-phase connection, 2 year WARRANTY
	VIE/A 454 T	7050 m³/h air flow, max. static pressure 120 Pa, power consumption 370 W, fan rotation speed 1400 rpm, weight 54-62 kg, three-phase connection, 2 year WARRANTY
		VIE/A 454 T
		7050 m³/h air flow, max. static pressure 120 Pa, power consumption 370 W, fan rotation speed 1400 rpm, weight 54-62 kg, three-phase connection, 2 year WARRANTY
	VIE/A 456 T	4570 m³/h air flow, max. static pressure 65 Pa, power consumption 180 W, fan rotation speed 900 rpm, weight 54-62 kg, three-phase connection, 2 year WARRANTY
		VIE/A 456 T
		4570 m³/h air flow, max. static pressure 65 Pa, power consumption 180 W, fan rotation speed 900 rpm, weight 54-62 kg, three-phase connection, 2 year WARRANTY
	VIE/A 452/4 T	Two speed motor, 12100/6050 m³/h air flow, max. static pressure 540/120 Pa, power consumption 3100/810 W, fan rotation speed 2800/1400 rpm, weight 54-62 kg, three-phase connection, 2 year WARRANTY
		VIE/A 452/4 T
		Two speed motor, 12100/6050 m³/h air flow, max. static pressure 540/120 Pa, power consumption 3100/810 W, fan rotation speed 2800/1400 rpm, weight 54-62 kg, three-phase connection, 2 year WARRANTY
	VIE/A 454/6 T	Two speed motor, 7050/4650 m³/h air flow, max. static pressure 120/65 Pa, power consumption 370/120 W, fan rotation speed 1400/900 rpm, weight 54-62 kg, three-phase connection, 2 year WARRANTY
		VIE/A 454/6 T
		Two speed motor, 7050/4650 m³/h air flow, max. static pressure 120/65 Pa, power consumption 370/120 W, fan rotation speed 1400/900 rpm, weight 54-62 kg, three-phase connection, 2 year WARRANTY
	VIE/A 504 M	9200 m³/h air flow, max. static pressure 145 Pa, power consumption 550 W, fan rotation speed 1400 rpm, weight 58-73 kg, one-phase connection, 2 year WARRANTY
	VIE/A 504 M
	9200 m³/h air flow, max. static pressure 145 Pa, power consumption 550 W, fan rotation speed 1400 rpm, weight 58-73 kg, one-phase connection, 2 year WARRANTY
VIE/A 502 T	17000 m³/h air flow, max. static pressure 680 Pa, power consumption 4000 W, fan rotation speed 2800 rpm, weight 58-73 kg, three-phase connection, 2 year WARRANTY
	VIE/A 502 T
	17000 m³/h air flow, max. static pressure 680 Pa, power consumption 4000 W, fan rotation speed 2800 rpm, weight 58-73 kg, three-phase connection, 2 year WARRANTY
VIE/A 504 T	9200 m³/h air flow, max. static pressure 145 Pa, power consumption 550 W, fan rotation speed 1400 rpm, weight 58-73 kg, three-phase connection, 2 year WARRANTY
	VIE/A 504 T
	9200 m³/h air flow, max. static pressure 145 Pa, power consumption 550 W, fan rotation speed 1400 rpm, weight 58-73 kg, three-phase connection, 2 year WARRANTY
VIE/A 506 T	6000 m³/h air flow, max. static pressure 65 Pa, power consumption 180 W, fan rotation speed 900 rpm, weight 58-73 kg, three-phase connection, 2 year WARRANTY
	VIE/A 506 T
	6000 m³/h air flow, max. static pressure 65 Pa, power consumption 180 W, fan rotation speed 900 rpm, weight 58-73 kg, three-phase connection, 2 year WARRANTY
VIE/A 502/4 T	Two speed motor, 16200/7800 m³/h air flow, max. static pressure 580/140 Pa, power consumption 4400/1100 W, fan rotation speed 2800/1400 rpm, weight 58-73 kg, three-phase connection, 2 year WARRANTY
	VIE/A 502/4 T
	Two speed motor, 16200/7800 m³/h air flow, max. static pressure 580/140 Pa, power consumption 4400/1100 W, fan rotation speed 2800/1400 rpm, weight 58-73 kg, three-phase connection, 2 year WARRANTY
VIE/A 504/6 T	Two speed motor, 9200/6000 m³/h air flow, max. static pressure 145/65 Pa, power consumption 550/180 W, fan rotation speed 1400/900 rpm, weight 58-73 kg, three-phase connection, 2 year WARRANTY
	VIE/A 504/6 T
	Two speed motor, 9200/6000 m³/h air flow, max. static pressure 145/65 Pa, power consumption 550/180 W, fan rotation speed 1400/900 rpm, weight 58-73 kg, three-phase connection, 2 year WARRANTY
VIE/A 564 M	11800 m³/h air flow, max. static pressure 190 Pa, power consumption 1100 W, fan rotation speed 1400 rpm, weight 65-71 kg, one-phase connection, 2 year WARRANTY
	VIE/A 564 M
	11800 m³/h air flow, max. static pressure 190 Pa, power consumption 1100 W, fan rotation speed 1400 rpm, weight 65-71 kg, one-phase connection, 2 year WARRANTY
VIE/A 564 T	13300 m³/h air flow, max. static pressure 225 Pa, power consumption 1100 W, fan rotation speed 1400 rpm, weight 65-71 kg, three-phase connection, 2 year WARRANTY
	VIE/A 564 T
	13300 m³/h air flow, max. static pressure 225 Pa, power consumption 1100 W, fan rotation speed 1400 rpm, weight 65-71 kg, three-phase connection, 2 year WARRANTY
VIE/A 566 T	8150 m³/h air flow, max. static pressure 85 Pa, power consumption 370 W, fan rotation speed 900 rpm, weight 65-71 kg, three-phase connection, 2 year WARRANTY
	VIE/A 566 T
	8150 m³/h air flow, max. static pressure 85 Pa, power consumption 370 W, fan rotation speed 900 rpm, weight 65-71 kg, three-phase connection, 2 year WARRANTY
VIE/A 568 T	6450 m³/h air flow, max. static pressure 50 Pa, power consumption 120 W, fan rotation speed 700 rpm, weight 65-71 kg, three-phase connection, 2 year WARRANTY
	VIE/A 568 T
	6450 m³/h air flow, max. static pressure 50 Pa, power consumption 120 W, fan rotation speed 700 rpm, weight 65-71 kg, three-phase connection, 2 year WARRANTY
VIE/A 564/6 T	Two speed motor, 13300/8150 m³/h air flow, max. static pressure 225/85 Pa, power consumption 1100/370 W, fan rotation speed 1400/900 rpm, weight 65-71 kg, three-phase connection, 2 year WARRANTY
	VIE/A 564/6 T
	Two speed motor, 13300/8150 m³/h air flow, max. static pressure 225/85 Pa, power consumption 1100/370 W, fan rotation speed 1400/900 rpm, weight 65-71 kg, three-phase connection, 2 year WARRANTY
VIE/A 566/8 T	Two speed motor, 8150/6450 m³/h air flow, max. static pressure 85/50 Pa, power consumption 370/150 W, fan rotation speed 900/700 rpm, weight 65-71 kg, three-phase connection, 2 year WARRANTY
	VIE/A 566/8 T
	Two speed motor, 8150/6450 m³/h air flow, max. static pressure 85/50 Pa, power consumption 370/150 W, fan rotation speed 900/700 rpm, weight 65-71 kg, three-phase connection, 2 year WARRANTY
VIE/A 634 T	17100 m³/h air flow, max. static pressure 240 Pa, power consumption 1500 W, fan rotation speed 1400 rpm, weight 75-80 kg, three-phase connection, 2 year WARRANTY
	VIE/A 634 T
	17100 m³/h air flow, max. static pressure 240 Pa, power consumption 1500 W, fan rotation speed 1400 rpm, weight 75-80 kg, three-phase connection, 2 year WARRANTY
VIE/A 636 T	10600 m³/h air flow, max. static pressure 95 Pa, power consumption 370 W, fan rotation speed 900 rpm, weight 75-80 kg, three-phase connection, 2 year WARRANTY
	VIE/A 636 T
	10600 m³/h air flow, max. static pressure 95 Pa, power consumption 370 W, fan rotation speed 900 rpm, weight 75-80 kg, three-phase connection, 2 year WARRANTY
VIE/A 638 T	8000 m³/h air flow, max. static pressure 55 Pa, power consumption 180 W, fan rotation speed 700 rpm, weight 75-80 kg, three-phase connection, 2 year WARRANTY
	VIE/A 638 T
	8000 m³/h air flow, max. static pressure 55 Pa, power consumption 180 W, fan rotation speed 700 rpm, weight 75-80 kg, three-phase connection, 2 year WARRANTY
VIE/A 634/6 T	Two speed motor, 17100/10600 m³/h air flow, max. static pressure 240/95 Pa, power consumption 1700/600 W, fan rotation speed 1400/900 rpm, weight 75-80 kg, three-phase connection, 2 year WARRANTY
	VIE/A 634/6 T
	Two speed motor, 17100/10600 m³/h air flow, max. static pressure 240/95 Pa, power consumption 1700/600 W, fan rotation speed 1400/900 rpm, weight 75-80 kg, three-phase connection, 2 year WARRANTY
VIE/A 636/8 T	Two speed motor, 10600/8000 m³/h air flow, max. static pressure 95/55 Pa, power consumption 370/150 W, fan rotation speed 900/700 rpm, weight 75-80 kg, three-phase connection, 2 year WARRANTY
	VIE/A 636/8 T
	Two speed motor, 10600/8000 m³/h air flow, max. static pressure 95/55 Pa, power consumption 370/150 W, fan rotation speed 900/700 rpm, weight 75-80 kg, three-phase connection, 2 year WARRANTY
VIE/A 714 T	25700 m³/h air flow, max. static pressure 250 Pa, power consumption 3000 W, fan rotation speed 1400 rpm, weight 90-95 kg, three-phase connection, 2 year WARRANTY
	VIE/A 714 T
	25700 m³/h air flow, max. static pressure 250 Pa, power consumption 3000 W, fan rotation speed 1400 rpm, weight 90-95 kg, three-phase connection, 2 year WARRANTY
VIE/A 716 T	16700 m³/h air flow, max. static pressure 105 Pa, power consumption 750 W, fan rotation speed 900 rpm, weight 90-95 kg, three-phase connection, 2 year WARRANTY
	VIE/A 716 T
	16700 m³/h air flow, max. static pressure 105 Pa, power consumption 750 W, fan rotation speed 900 rpm, weight 90-95 kg, three-phase connection, 2 year WARRANTY
VIE/A 718 T	12400 m³/h air flow, max. static pressure 55 Pa, power consumption 370 W, fan rotation speed 700 rpm, weight 90-95 kg, three-phase connection, 2 year WARRANTY
	VIE/A 718 T
	12400 m³/h air flow, max. static pressure 55 Pa, power consumption 370 W, fan rotation speed 700 rpm, weight 90-95 kg, three-phase connection, 2 year WARRANTY
VIE/A 714/6 T	Two speed motor, 25700/16700 m³/h air flow, max. static pressure 250/105 Pa, power consumption 3000/900 W, fan rotation speed 1400/900 rpm, weight 90-95 kg, three-phase connection, 2 year WARRANTY
	VIE/A 714/6 T
	Two speed motor, 25700/16700 m³/h air flow, max. static pressure 250/105 Pa, power consumption 3000/900 W, fan rotation speed 1400/900 rpm, weight 90-95 kg, three-phase connection, 2 year WARRANTY
VIE/A 716/8 T	Two speed motor, 16700/12400 m³/h air flow, max. static pressure 105/55 Pa, power consumption 1250/600 W, fan rotation speed 900/700 rpm, weight 90-95 kg, three-phase connection, 2 year WARRANTY
	VIE/A 716/8 T
	Two speed motor, 16700/12400 m³/h air flow, max. static pressure 105/55 Pa, power consumption 1250/600 W, fan rotation speed 900/700 rpm, weight 90-95 kg, three-phase connection, 2 year WARRANTY
VIE/A 804 T	36800 m³/h air flow, max. static pressure 330 Pa, power consumption 5500 W, fan rotation speed 1400 rpm, weight 156-185 kg, three-phase connection, 2 year WARRANTY
	VIE/A 804 T
	36800 m³/h air flow, max. static pressure 330 Pa, power consumption 5500 W, fan rotation speed 1400 rpm, weight 156-185 kg, three-phase connection, 2 year WARRANTY
VIE/A 806 T	25400 m³/h air flow, max. static pressure 130 Pa, power consumption 1500 W, fan rotation speed 900 rpm, weight 156-185 kg, three-phase connection, 2 year WARRANTY
	VIE/A 806 T
	25400 m³/h air flow, max. static pressure 130 Pa, power consumption 1500 W, fan rotation speed 900 rpm, weight 156-185 kg, three-phase connection, 2 year WARRANTY
VIE/A 808 T	18800 m³/h air flow, max. static pressure 65 Pa, power consumption 550 W, fan rotation speed 700 rpm, weight 156-185 kg, three-phase connection, 2 year WARRANTY
	VIE/A 808 T
	18800 m³/h air flow, max. static pressure 65 Pa, power consumption 550 W, fan rotation speed 700 rpm, weight 156-185 kg, three-phase connection, 2 year WARRANTY
VIE/A 804/6 T	Two speed motor, 36800/25400 m³/h air flow, max. static pressure 330/130 Pa, power consumption 5500/1600 W, fan rotation speed 1400/900 rpm, weight 156-185 kg, three-phase connection, 2 year WARRANTY
	VIE/A 804/6 T
	Two speed motor, 36800/25400 m³/h air flow, max. static pressure 330/130 Pa, power consumption 5500/1600 W, fan rotation speed 1400/900 rpm, weight 156-185 kg, three-phase connection, 2 year WARRANTY
VIE/A 806/8 T	Two speed motor, 25400/18800 m³/h air flow, max. static pressure 130/65 Pa, power consumption 1250/600 W, fan rotation speed 900/700 rpm, weight 156-185 kg, three-phase connection, 2 year WARRANTY
	VIE/A 806/8 T
	Two speed motor, 25400/18800 m³/h air flow, max. static pressure 130/65 Pa, power consumption 1250/600 W, fan rotation speed 900/700 rpm, weight 156-185 kg, three-phase connection, 2 year WARRANTY
VIE/A 904 T	51000 m³/h air flow, max. static pressure 330 Pa, power consumption 7500 W, fan rotation speed 1400 rpm, weight 215-235 kg, three-phase connection, 2 year WARRANTY
	VIE/A 904 T
	51000 m³/h air flow, max. static pressure 330 Pa, power consumption 7500 W, fan rotation speed 1400 rpm, weight 215-235 kg, three-phase connection, 2 year WARRANTY
VIE/A 906 T	33800 m³/h air flow, max. static pressure 145 Pa, power consumption 2200 W, fan rotation speed 900 rpm, weight 215-235 kg, three-phase connection, 2 year WARRANTY
	VIE/A 906 T
	33800 m³/h air flow, max. static pressure 145 Pa, power consumption 2200 W, fan rotation speed 900 rpm, weight 215-235 kg, three-phase connection, 2 year WARRANTY
VIE/A 908 T	25000 m³/h air flow, max. static pressure 80 Pa, power consumption 1100 W, fan rotation speed 700 rpm, weight 215-235 kg, three-phase connection, 2 year WARRANTY
	VIE/A 908 T
	25000 m³/h air flow, max. static pressure 80 Pa, power consumption 1100 W, fan rotation speed 700 rpm, weight 215-235 kg, three-phase connection, 2 year WARRANTY
VIE/A 904/6 T	Two speed motor, 48000/31500 m³/h air flow, max. static pressure 330/145 Pa, power consumption 7200/2500 W, fan rotation speed 1400/900 rpm, weight 215-235 kg, three-phase connection, 2 year WARRANTY
	VIE/A 904/6 T
	Two speed motor, 48000/31500 m³/h air flow, max. static pressure 330/145 Pa, power consumption 7200/2500 W, fan rotation speed 1400/900 rpm, weight 215-235 kg, three-phase connection, 2 year WARRANTY
VIE/A 906/8 T	Two speed motor, 33800/25000 m³/h air flow, max. static pressure 145/80 Pa, power consumption 2200/1100 W, fan rotation speed 900/700 rpm, weight 215-235 kg, three-phase connection, 2 year WARRANTY
	VIE/A 906/8 T
	Two speed motor, 33800/25000 m³/h air flow, max. static pressure 145/80 Pa, power consumption 2200/1100 W, fan rotation speed 900/700 rpm, weight 215-235 kg, three-phase connection, 2 year WARRANTY
VIE/A 1004 T	61000 m³/h air flow, max. static pressure 445 Pa, power consumption 11000 W, fan rotation speed 1400 rpm, weight 260-325 kg, three-phase connection, 2 year WARRANTY
	VIE/A 1004 T
	61000 m³/h air flow, max. static pressure 445 Pa, power consumption 11000 W, fan rotation speed 1400 rpm, weight 260-325 kg, three-phase connection, 2 year WARRANTY
VIE/A 1006 T	43700 m³/h air flow, max. static pressure 180 Pa, power consumption 3000 W, fan rotation speed 900 rpm, weight 260-325 kg, three-phase connection, 2 year WARRANTY
	VIE/A 1006 T
	43700 m³/h air flow, max. static pressure 180 Pa, power consumption 3000 W, fan rotation speed 900 rpm, weight 260-325 kg, three-phase connection, 2 year WARRANTY
VIE/A 1008 T	33000 m³/h air flow, max. static pressure 100 Pa, power consumption 1500 W, fan rotation speed 700 rpm, weight 260-325 kg, three-phase connection, 2 year WARRANTY
	VIE/A 1008 T
	33000 m³/h air flow, max. static pressure 100 Pa, power consumption 1500 W, fan rotation speed 700 rpm, weight 260-325 kg, three-phase connection, 2 year WARRANTY
VIE/A 1004/6 T	Two speed motor, 61000/39000 m³/h air flow, max. static pressure 445/180 Pa, power consumption 11000/3600 W, fan rotation speed 1400/900 rpm, weight 260-325 kg, three-phase connection, 2 year WARRANTY
	VIE/A 1004/6 T
	Two speed motor, 61000/39000 m³/h air flow, max. static pressure 445/180 Pa, power consumption 11000/3600 W, fan rotation speed 1400/900 rpm, weight 260-325 kg, three-phase connection, 2 year WARRANTY
VIE/A 1006/8 T	Two speed motor, 43700/33000 m³/h air flow, max. static pressure 180/100 Pa, power consumption 3500/1500 W, fan rotation speed 900/700 rpm, weight 260-325 kg, three-phase connection, 2 year WARRANTY
	VIE/A 1006/8 T
	Two speed motor, 43700/33000 m³/h air flow, max. static pressure 180/100 Pa, power consumption 3500/1500 W, fan rotation speed 900/700 rpm, weight 260-325 kg, three-phase connection, 2 year WARRANTY
VIE/A 1126 T	71000 m³/h air flow, max. static pressure 280 Pa, power consumption 11000 W, fan rotation speed 900 rpm, weight 270-320 kg, three-phase connection, 2 year WARRANTY
	VIE/A 1126 T
	71000 m³/h air flow, max. static pressure 280 Pa, power consumption 11000 W, fan rotation speed 900 rpm, weight 270-320 kg, three-phase connection, 2 year WARRANTY
VIE/A 1128 T	52300 m³/h air flow, max. static pressure 150 Pa, power consumption 4000 W, fan rotation speed 700 rpm, weight 270-320 kg, three-phase connection, 2 year WARRANTY
	VIE/A 1128 T
	52300 m³/h air flow, max. static pressure 150 Pa, power consumption 4000 W, fan rotation speed 700 rpm, weight 270-320 kg, three-phase connection, 2 year WARRANTY
VIE/A 1126/8 T	Two speed motor, 71000/52300 m³/h air flow, max. static pressure 280/150 Pa, power consumption 10000/5000 W, fan rotation speed 900/700 rpm, weight 270-320 kg, three-phase connection, 2 year WARRANTY
	VIE/A 1126/8 T
	Two speed motor, 71000/52300 m³/h air flow, max. static pressure 280/150 Pa, power consumption 10000/5000 W, fan rotation speed 900/700 rpm, weight 270-320 kg, three-phase connection, 2 year WARRANTY
VIE/A 1256 T	91000 m³/h air flow, max. static pressure 300 Pa, power consumption 15000 W, fan rotation speed 900 rpm, weight 370-440 kg, three-phase connection, 2 year WARRANTY
	VIE/A 1256 T
	91000 m³/h air flow, max. static pressure 300 Pa, power consumption 15000 W, fan rotation speed 900 rpm, weight 370-440 kg, three-phase connection, 2 year WARRANTY
VIE/A 1258 T	67400 m³/h air flow, max. static pressure 160 Pa, power consumption 5500 W, fan rotation speed 700 rpm, weight 370-440 kg, three-phase connection, 2 year WARRANTY
	VIE/A 1258 T
	67400 m³/h air flow, max. static pressure 160 Pa, power consumption 5500 W, fan rotation speed 700 rpm, weight 370-440 kg, three-phase connection, 2 year WARRANTY
VIE/A 1256/8 T	Two speed motor, 91000/67400 m³/h air flow, max. static pressure 300/160 Pa, power consumption 16500/7800 W, fan rotation speed 900/700 rpm, weight 370-440 kg, three-phase connection, 2 year WARRANTY
	VIE/A 1256/8 T
	Two speed motor, 91000/67400 m³/h air flow, max. static pressure 300/160 Pa, power consumption 16500/7800 W, fan rotation speed 900/700 rpm, weight 370-440 kg, three-phase connection, 2 year WARRANTY
VIE/A 1406 T	120000 m³/h air flow, max. static pressure 340 Pa, power consumption 18500 W, fan rotation speed 900 rpm, weight 410-580 kg, three-phase connection, 2 year WARRANTY
	VIE/A 1406 T
	120000 m³/h air flow, max. static pressure 340 Pa, power consumption 18500 W, fan rotation speed 900 rpm, weight 410-580 kg, three-phase connection, 2 year WARRANTY
VIE/A 1408 T	89000 m³/h air flow, max. static pressure 185 Pa, power consumption 7500 W, fan rotation speed 700 rpm, weight 410-580 kg, three-phase connection, 2 year WARRANTY
	VIE/A 1408 T
	89000 m³/h air flow, max. static pressure 185 Pa, power consumption 7500 W, fan rotation speed 700 rpm, weight 410-580 kg, three-phase connection, 2 year WARRANTY
VIE/A 1406/8 T	Two speed motor, 120000/89000 m³/h air flow, max. static pressure 340/185 Pa, power consumption 16500/7800 W, fan rotation speed 900/700 rpm, weight 410-580 kg, three-phase connection, 2 year WARRANTY
	VIE/A 1406/8 T
	Two speed motor, 120000/89000 m³/h air flow, max. static pressure 340/185 Pa, power consumption 16500/7800 W, fan rotation speed 900/700 rpm, weight 410-580 kg, three-phase connection, 2 year WARRANTY

Izmēri

Modelis: VIE/A 1408 T

PD-VIE support feet for mounting on flat surface
	PD-VIE 1400	Support feet for 1400 size VIE/A, VIE/C ducted fan mounting on flat surface
	PD-VIE 1400
	Support feet for 1400 size VIE/A, VIE/C ducted fan mounting on flat surface
RT-DM protection grille
	RT-DM 1400	Protection grille for 1400 size VIE/A, VIE/C fans
	RT-DM 1400
	Protection grille for 1400 size VIE/A, VIE/C fans
Frequency converters
	INV 7.5 [kW] IP20	Variable frequency drive PF4M, 480 V, 3 Ph, 7.5 kW, 18 A, IP20
		INV 7.5 [kW] IP20
		Variable frequency drive PF4M, 480 V, 3 Ph, 7.5 kW, 18 A, IP20
	INV 11 [kW] IP20	Variable frequency drive PF4M, 480 V, 3 Ph, 11 kW, 24 A, IP20
	INV 11 [kW] IP20
	Variable frequency drive PF4M, 480 V, 3 Ph, 11 kW, 24 A, IP20
INV 7.5 [kW] IP66	Variable frequency drive PowerFlex70, 400 V, 3 Ph, 7.5 kW, 15.4 A, IP66
	INV 7.5 [kW] IP66
	Variable frequency drive PowerFlex70, 400 V, 3 Ph, 7.5 kW, 15.4 A, IP66
INV 11 [kW] IP66	Variable frequency drive PowerFlex70, 400 V, 3 Ph, 11 kW, 22 A, IP66
	INV 11 [kW] IP66
	Variable frequency drive PowerFlex70, 400 V, 3 Ph, 11 kW, 22 A, IP66
