Ducted fan - VIE/C 804/6 T | Aspirnova
Izvēlieties produkta modeli:

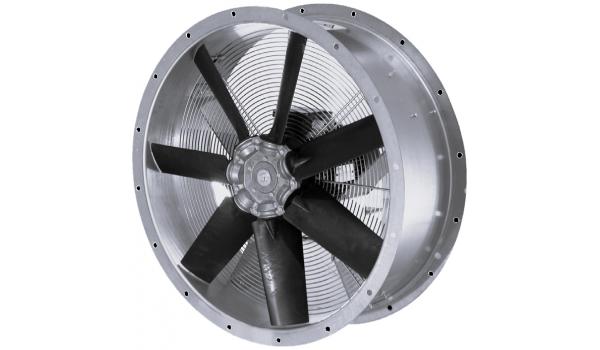

Ducted fan, axial, with a short double flanged cylindrical casing in galvanized steel, impeller blades in glass reinforced polypropylene with an airfoil profile and aluminum hub, air flow directed from the motor to the impeller, allowed extracted air temperature range from -20ºC to +50ºC, IP55/F protection / insulation class, two speed motor, 36800/25400 m³/h air flow, max. static pressure 330/130 Pa, power consumption 5500/1600 W, fan rotation speed 1400/900 rpm, weight 120-148 kg, three-phase connection, 2 year WARRANTY
Ražotājs:
Vai jūs interesē šis produkts? Sazinieties ar mums:
Saņemt piedāvājumu
Noklikšķiniet uz modeļa: parādīsies tehniskā informācija, izmēri, piederumi
| VIE/C - axial, with a short double flanged cylindrical casing in galvanized steel, impeller blades in glass reinforced polypropylene with an airfoil profile and aluminum hub, air flow directed from the motor to the impeller, allowed extracted air temperature range from -20ºC to +50ºC, IP55/F protection / insulation class | |||
|---|---|---|---|
|
VIE/C 312 M | 2820 m³/h air flow, max. static pressure 230 Pa, power consumption 250 W, fan rotation speed 2800 rpm, weight 20 kg, one-phase connection, 2 year WARRANTY | |
|
|
VIE/C 312 M | ||
| 2820 m³/h air flow, max. static pressure 230 Pa, power consumption 250 W, fan rotation speed 2800 rpm, weight 20 kg, one-phase connection, 2 year WARRANTY | |||
| VIE/C 314 M | 2380 m³/h air flow, max. static pressure 70 Pa, power consumption 120 W, fan rotation speed 1400 rpm, weight 20 kg, one-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 314 M | ||
| 2380 m³/h air flow, max. static pressure 70 Pa, power consumption 120 W, fan rotation speed 1400 rpm, weight 20 kg, one-phase connection, 2 year WARRANTY | |||
| VIE/C 312 T | 3150 m³/h air flow, max. static pressure 250 Pa, power consumption 250 W, fan rotation speed 2800 rpm, weight 20 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 312 T | ||
| 3150 m³/h air flow, max. static pressure 250 Pa, power consumption 250 W, fan rotation speed 2800 rpm, weight 20 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 314 T | 2380 m³/h air flow, max. static pressure 70 Pa, power consumption 120 W, fan rotation speed 1400 rpm, weight 20 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 314 T | ||
| 2380 m³/h air flow, max. static pressure 70 Pa, power consumption 120 W, fan rotation speed 1400 rpm, weight 20 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 352 M | 6100 m³/h air flow, max. static pressure 390 Pa, power consumption 1100 W, fan rotation speed 2800 rpm, weight 26-30 kg, one-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 352 M | ||
| 6100 m³/h air flow, max. static pressure 390 Pa, power consumption 1100 W, fan rotation speed 2800 rpm, weight 26-30 kg, one-phase connection, 2 year WARRANTY | |||
| VIE/C 354 M | 3300 m³/h air flow, max. static pressure 95 Pa, power consumption 180 W, fan rotation speed 1400 rpm, weight 26-30 kg, one-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 354 M | ||
| 3300 m³/h air flow, max. static pressure 95 Pa, power consumption 180 W, fan rotation speed 1400 rpm, weight 26-30 kg, one-phase connection, 2 year WARRANTY | |||
| VIE/C 352 T | 6100 m³/h air flow, max. static pressure 425 Pa, power consumption 1100 W, fan rotation speed 2800 rpm, weight 26-30 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 352 T | ||
| 6100 m³/h air flow, max. static pressure 425 Pa, power consumption 1100 W, fan rotation speed 2800 rpm, weight 26-30 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 354 T | 3300 m³/h air flow, max. static pressure 95 Pa, power consumption 180 W, fan rotation speed 1400 rpm, weight 26-30 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 354 T | ||
| 3300 m³/h air flow, max. static pressure 95 Pa, power consumption 180 W, fan rotation speed 1400 rpm, weight 26-30 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 352/4 T | Two speed motor, 6100/3050 m³/h air flow, max. static pressure 390/70 Pa, power consumption 960/250 W, fan rotation speed 2800/1400 rpm, weight 26-30 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 352/4 T | ||
| Two speed motor, 6100/3050 m³/h air flow, max. static pressure 390/70 Pa, power consumption 960/250 W, fan rotation speed 2800/1400 rpm, weight 26-30 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 404 M | 4500 m³/h air flow, max. static pressure 110 Pa, power consumption 250 W, fan rotation speed 1400 rpm, weight 30-37 kg, one-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 404 M | ||
| 4500 m³/h air flow, max. static pressure 110 Pa, power consumption 250 W, fan rotation speed 1400 rpm, weight 30-37 kg, one-phase connection, 2 year WARRANTY | |||
| VIE/C 402 T | 9400 m³/h air flow, max. static pressure 530 Pa, power consumption 1500 W, fan rotation speed 2800 rpm, weight 30-37 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 402 T | ||
| 9400 m³/h air flow, max. static pressure 530 Pa, power consumption 1500 W, fan rotation speed 2800 rpm, weight 30-37 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 404 T | 4400 m³/h air flow, max. static pressure 130 Pa, power consumption 180 W, fan rotation speed 1400 rpm, weight 30-37 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 404 T | ||
| 4400 m³/h air flow, max. static pressure 130 Pa, power consumption 180 W, fan rotation speed 1400 rpm, weight 30-37 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 406 T | 2850 m³/h air flow, max. static pressure 50 Pa, power consumption 180 W, fan rotation speed 900 rpm, weight 30-37 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 406 T | ||
| 2850 m³/h air flow, max. static pressure 50 Pa, power consumption 180 W, fan rotation speed 900 rpm, weight 30-37 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 402/4 T | Two speed motor, 9700/4850 m³/h air flow, max. static pressure 500/110 Pa, power consumption 2000/500 W, fan rotation speed 2800/1400 rpm, weight 30-37 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 402/4 T | ||
| Two speed motor, 9700/4850 m³/h air flow, max. static pressure 500/110 Pa, power consumption 2000/500 W, fan rotation speed 2800/1400 rpm, weight 30-37 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 404/6 T | Two speed motor, 4400/2850 m³/h air flow, max. static pressure 130/50 Pa, power consumption 260/90 W, fan rotation speed 1400/900 rpm, weight 30-37 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 404/6 T | ||
| Two speed motor, 4400/2850 m³/h air flow, max. static pressure 130/50 Pa, power consumption 260/90 W, fan rotation speed 1400/900 rpm, weight 30-37 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 454 M | 7050 m³/h air flow, max. static pressure 120 Pa, power consumption 370 W, fan rotation speed 1400 rpm, weight 40-48 kg, one-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 454 M | ||
| 7050 m³/h air flow, max. static pressure 120 Pa, power consumption 370 W, fan rotation speed 1400 rpm, weight 40-48 kg, one-phase connection, 2 year WARRANTY | |||
| VIE/C 452 T | 13100 m³/h air flow, max. static pressure 575 Pa, power consumption 3000 W, fan rotation speed 2800 rpm, weight 40-48 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 452 T | ||
| 13100 m³/h air flow, max. static pressure 575 Pa, power consumption 3000 W, fan rotation speed 2800 rpm, weight 40-48 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 454 T | 7050 m³/h air flow, max. static pressure 120 Pa, power consumption 370 W, fan rotation speed 1400 rpm, weight 40-48 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 454 T | ||
| 7050 m³/h air flow, max. static pressure 120 Pa, power consumption 370 W, fan rotation speed 1400 rpm, weight 40-48 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 456 T | 4570 m³/h air flow, max. static pressure 65 Pa, power consumption 180 W, fan rotation speed 900 rpm, weight 40-48 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 456 T | ||
| 4570 m³/h air flow, max. static pressure 65 Pa, power consumption 180 W, fan rotation speed 900 rpm, weight 40-48 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 452/4 T | Two speed motor, 12100/6050 m³/h air flow, max. static pressure 540/120 Pa, power consumption 3100/810 W, fan rotation speed 2800/1400 rpm, weight 40-48 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 452/4 T | ||
| Two speed motor, 12100/6050 m³/h air flow, max. static pressure 540/120 Pa, power consumption 3100/810 W, fan rotation speed 2800/1400 rpm, weight 40-48 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 454/6 T | Two speed motor, 7050/4650 m³/h air flow, max. static pressure 120/65 Pa, power consumption 370/120 W, fan rotation speed 1400/900 rpm, weight 40-48 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 454/6 T | ||
| Two speed motor, 7050/4650 m³/h air flow, max. static pressure 120/65 Pa, power consumption 370/120 W, fan rotation speed 1400/900 rpm, weight 40-48 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 504 M | 9200 m³/h air flow, max. static pressure 145 Pa, power consumption 550 W, fan rotation speed 1400 rpm, weight 43-58 kg, one-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 504 M | ||
| 9200 m³/h air flow, max. static pressure 145 Pa, power consumption 550 W, fan rotation speed 1400 rpm, weight 43-58 kg, one-phase connection, 2 year WARRANTY | |||
| VIE/C 502 T | 17000 m³/h air flow, max. static pressure 680 Pa, power consumption 4000 W, fan rotation speed 2800 rpm, weight 43-58 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 502 T | ||
| 17000 m³/h air flow, max. static pressure 680 Pa, power consumption 4000 W, fan rotation speed 2800 rpm, weight 43-58 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 504 T | 9200 m³/h air flow, max. static pressure 145 Pa, power consumption 550 W, fan rotation speed 1400 rpm, weight 43-58 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 504 T | ||
| 9200 m³/h air flow, max. static pressure 145 Pa, power consumption 550 W, fan rotation speed 1400 rpm, weight 43-58 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 506 T | 6000 m³/h air flow, max. static pressure 65 Pa, power consumption 180 W, fan rotation speed 900 rpm, weight 43-58 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 506 T | ||
| 6000 m³/h air flow, max. static pressure 65 Pa, power consumption 180 W, fan rotation speed 900 rpm, weight 43-58 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 502/4 T | Two speed motor, 16200/7800 m³/h air flow, max. static pressure 580/140 Pa, power consumption 4400/1100 W, fan rotation speed 2800/1400 rpm, weight 43-58 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 502/4 T | ||
| Two speed motor, 16200/7800 m³/h air flow, max. static pressure 580/140 Pa, power consumption 4400/1100 W, fan rotation speed 2800/1400 rpm, weight 43-58 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 504/6 T | Two speed motor, 9200/6000 m³/h air flow, max. static pressure 145/65 Pa, power consumption 550/180 W, fan rotation speed 1400/900 rpm, weight 43-58 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 504/6 T | ||
| Two speed motor, 9200/6000 m³/h air flow, max. static pressure 145/65 Pa, power consumption 550/180 W, fan rotation speed 1400/900 rpm, weight 43-58 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 564 M | 11800 m³/h air flow, max. static pressure 190 Pa, power consumption 1100 W, fan rotation speed 1400 rpm, weight 46-52 kg, one-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 564 M | ||
| 11800 m³/h air flow, max. static pressure 190 Pa, power consumption 1100 W, fan rotation speed 1400 rpm, weight 46-52 kg, one-phase connection, 2 year WARRANTY | |||
| VIE/C 564 T | 13300 m³/h air flow, max. static pressure 225 Pa, power consumption 1100 W, fan rotation speed 1400 rpm, weight 46-52 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 564 T | ||
| 13300 m³/h air flow, max. static pressure 225 Pa, power consumption 1100 W, fan rotation speed 1400 rpm, weight 46-52 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 566 T | 8150 m³/h air flow, max. static pressure 85 Pa, power consumption 370 W, fan rotation speed 900 rpm, weight 46-52 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 566 T | ||
| 8150 m³/h air flow, max. static pressure 85 Pa, power consumption 370 W, fan rotation speed 900 rpm, weight 46-52 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 568 T | 6450 m³/h air flow, max. static pressure 50 Pa, power consumption 120 W, fan rotation speed 700 rpm, weight 46-52 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 568 T | ||
| 6450 m³/h air flow, max. static pressure 50 Pa, power consumption 120 W, fan rotation speed 700 rpm, weight 46-52 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 564/6 T | Two speed motor, 13300/8150 m³/h air flow, max. static pressure 225/85 Pa, power consumption 1100/370 W, fan rotation speed 1400/900 rpm, weight 46-52 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 564/6 T | ||
| Two speed motor, 13300/8150 m³/h air flow, max. static pressure 225/85 Pa, power consumption 1100/370 W, fan rotation speed 1400/900 rpm, weight 46-52 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 566/8 T | Two speed motor, 8150/6450 m³/h air flow, max. static pressure 85/50 Pa, power consumption 370/150 W, fan rotation speed 900/700 rpm, weight 46-52 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 566/8 T | ||
| Two speed motor, 8150/6450 m³/h air flow, max. static pressure 85/50 Pa, power consumption 370/150 W, fan rotation speed 900/700 rpm, weight 46-52 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 634 T | 17100 m³/h air flow, max. static pressure 240 Pa, power consumption 1500 W, fan rotation speed 1400 rpm, weight 53-58 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 634 T | ||
| 17100 m³/h air flow, max. static pressure 240 Pa, power consumption 1500 W, fan rotation speed 1400 rpm, weight 53-58 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 636 T | 10600 m³/h air flow, max. static pressure 95 Pa, power consumption 370 W, fan rotation speed 900 rpm, weight 53-58 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 636 T | ||
| 10600 m³/h air flow, max. static pressure 95 Pa, power consumption 370 W, fan rotation speed 900 rpm, weight 53-58 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 638 T | 8000 m³/h air flow, max. static pressure 55 Pa, power consumption 180 W, fan rotation speed 700 rpm, weight 53-58 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 638 T | ||
| 8000 m³/h air flow, max. static pressure 55 Pa, power consumption 180 W, fan rotation speed 700 rpm, weight 53-58 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 634/6 T | Two speed motor, 17100/10600 m³/h air flow, max. static pressure 240/95 Pa, power consumption 1700/600 W, fan rotation speed 1400/900 rpm, weight 53-58 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 634/6 T | ||
| Two speed motor, 17100/10600 m³/h air flow, max. static pressure 240/95 Pa, power consumption 1700/600 W, fan rotation speed 1400/900 rpm, weight 53-58 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 636/8 T | Two speed motor, 10600/8000 m³/h air flow, max. static pressure 95/55 Pa, power consumption 370/150 W, fan rotation speed 900/700 rpm, weight 53-58 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 636/8 T | ||
| Two speed motor, 10600/8000 m³/h air flow, max. static pressure 95/55 Pa, power consumption 370/150 W, fan rotation speed 900/700 rpm, weight 53-58 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 714 T | 25700 m³/h air flow, max. static pressure 250 Pa, power consumption 3000 W, fan rotation speed 1400 rpm, weight 65-70 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 714 T | ||
| 25700 m³/h air flow, max. static pressure 250 Pa, power consumption 3000 W, fan rotation speed 1400 rpm, weight 65-70 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 716 T | 16700 m³/h air flow, max. static pressure 105 Pa, power consumption 750 W, fan rotation speed 900 rpm, weight 65-70 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 716 T | ||
| 16700 m³/h air flow, max. static pressure 105 Pa, power consumption 750 W, fan rotation speed 900 rpm, weight 65-70 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 718 T | 12400 m³/h air flow, max. static pressure 55 Pa, power consumption 370 W, fan rotation speed 700 rpm, weight 65-70 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 718 T | ||
| 12400 m³/h air flow, max. static pressure 55 Pa, power consumption 370 W, fan rotation speed 700 rpm, weight 65-70 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 714/6 T | Two speed motor, 25700/16700 m³/h air flow, max. static pressure 250/105 Pa, power consumption 3000/900 W, fan rotation speed 1400/900 rpm, weight 65-70 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 714/6 T | ||
| Two speed motor, 25700/16700 m³/h air flow, max. static pressure 250/105 Pa, power consumption 3000/900 W, fan rotation speed 1400/900 rpm, weight 65-70 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 716/8 T | Two speed motor, 16700/12400 m³/h air flow, max. static pressure 105/55 Pa, power consumption 1250/600 W, fan rotation speed 900/700 rpm, weight 65-70 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 716/8 T | ||
| Two speed motor, 16700/12400 m³/h air flow, max. static pressure 105/55 Pa, power consumption 1250/600 W, fan rotation speed 900/700 rpm, weight 65-70 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 804 T | 36800 m³/h air flow, max. static pressure 330 Pa, power consumption 5500 W, fan rotation speed 1400 rpm, weight 120-148 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 804 T | ||
| 36800 m³/h air flow, max. static pressure 330 Pa, power consumption 5500 W, fan rotation speed 1400 rpm, weight 120-148 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 806 T | 25400 m³/h air flow, max. static pressure 130 Pa, power consumption 1500 W, fan rotation speed 900 rpm, weight 120-148 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 806 T | ||
| 25400 m³/h air flow, max. static pressure 130 Pa, power consumption 1500 W, fan rotation speed 900 rpm, weight 120-148 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 808 T | 18800 m³/h air flow, max. static pressure 65 Pa, power consumption 550 W, fan rotation speed 700 rpm, weight 120-148 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 808 T | ||
| 18800 m³/h air flow, max. static pressure 65 Pa, power consumption 550 W, fan rotation speed 700 rpm, weight 120-148 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 804/6 T | Two speed motor, 36800/25400 m³/h air flow, max. static pressure 330/130 Pa, power consumption 5500/1600 W, fan rotation speed 1400/900 rpm, weight 120-148 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 804/6 T | ||
| Two speed motor, 36800/25400 m³/h air flow, max. static pressure 330/130 Pa, power consumption 5500/1600 W, fan rotation speed 1400/900 rpm, weight 120-148 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 806/8 T | Two speed motor, 25400/18800 m³/h air flow, max. static pressure 130/65 Pa, power consumption 1250/600 W, fan rotation speed 900/700 rpm, weight 120-148 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 806/8 T | ||
| Two speed motor, 25400/18800 m³/h air flow, max. static pressure 130/65 Pa, power consumption 1250/600 W, fan rotation speed 900/700 rpm, weight 120-148 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 904 T | 51000 m³/h air flow, max. static pressure 330 Pa, power consumption 7500 W, fan rotation speed 1400 rpm, weight 175-196 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 904 T | ||
| 51000 m³/h air flow, max. static pressure 330 Pa, power consumption 7500 W, fan rotation speed 1400 rpm, weight 175-196 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 906 T | 33800 m³/h air flow, max. static pressure 145 Pa, power consumption 2200 W, fan rotation speed 900 rpm, weight 175-196 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 906 T | ||
| 33800 m³/h air flow, max. static pressure 145 Pa, power consumption 2200 W, fan rotation speed 900 rpm, weight 175-196 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 908 T | 25000 m³/h air flow, max. static pressure 80 Pa, power consumption 1100 W, fan rotation speed 700 rpm, weight 175-196 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 908 T | ||
| 25000 m³/h air flow, max. static pressure 80 Pa, power consumption 1100 W, fan rotation speed 700 rpm, weight 175-196 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 904/6 T | Two speed motor, 48000/31500 m³/h air flow, max. static pressure 330/145 Pa, power consumption 7200/2500 W, fan rotation speed 1400/900 rpm, weight 175-196 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 904/6 T | ||
| Two speed motor, 48000/31500 m³/h air flow, max. static pressure 330/145 Pa, power consumption 7200/2500 W, fan rotation speed 1400/900 rpm, weight 175-196 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 906/8 T | Two speed motor, 33800/25000 m³/h air flow, max. static pressure 145/80 Pa, power consumption 2200/1100 W, fan rotation speed 900/700 rpm, weight 175-196 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 906/8 T | ||
| Two speed motor, 33800/25000 m³/h air flow, max. static pressure 145/80 Pa, power consumption 2200/1100 W, fan rotation speed 900/700 rpm, weight 175-196 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 1004 T | 61000 m³/h air flow, max. static pressure 445 Pa, power consumption 11000 W, fan rotation speed 1400 rpm, weight 210-280 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 1004 T | ||
| 61000 m³/h air flow, max. static pressure 445 Pa, power consumption 11000 W, fan rotation speed 1400 rpm, weight 210-280 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 1006 T | 43700 m³/h air flow, max. static pressure 180 Pa, power consumption 3000 W, fan rotation speed 900 rpm, weight 210-280 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 1006 T | ||
| 43700 m³/h air flow, max. static pressure 180 Pa, power consumption 3000 W, fan rotation speed 900 rpm, weight 210-280 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 1008 T | 33000 m³/h air flow, max. static pressure 100 Pa, power consumption 1500 W, fan rotation speed 700 rpm, weight 210-280 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 1008 T | ||
| 33000 m³/h air flow, max. static pressure 100 Pa, power consumption 1500 W, fan rotation speed 700 rpm, weight 210-280 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 1004/6 T | Two speed motor, 61000/39000 m³/h air flow, max. static pressure 445/180 Pa, power consumption 11000/3600 W, fan rotation speed 1400/900 rpm, weight 210-280 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 1004/6 T | ||
| Two speed motor, 61000/39000 m³/h air flow, max. static pressure 445/180 Pa, power consumption 11000/3600 W, fan rotation speed 1400/900 rpm, weight 210-280 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 1006/8 T | Two speed motor, 43700/33000 m³/h air flow, max. static pressure 180/100 Pa, power consumption 3500/1500 W, fan rotation speed 900/700 rpm, weight 210-280 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 1006/8 T | ||
| Two speed motor, 43700/33000 m³/h air flow, max. static pressure 180/100 Pa, power consumption 3500/1500 W, fan rotation speed 900/700 rpm, weight 210-280 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 1126 T | 71000 m³/h air flow, max. static pressure 280 Pa, power consumption 11000 W, fan rotation speed 900 rpm, weight 208-230 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 1126 T | ||
| 71000 m³/h air flow, max. static pressure 280 Pa, power consumption 11000 W, fan rotation speed 900 rpm, weight 208-230 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 1128 T | 52300 m³/h air flow, max. static pressure 150 Pa, power consumption 4000 W, fan rotation speed 700 rpm, weight 208-230 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 1128 T | ||
| 52300 m³/h air flow, max. static pressure 150 Pa, power consumption 4000 W, fan rotation speed 700 rpm, weight 208-230 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 1126/8 T | Two speed motor, 71000/52300 m³/h air flow, max. static pressure 280/150 Pa, power consumption 10000/5000 W, fan rotation speed 900/700 rpm, weight 208-230 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 1126/8 T | ||
| Two speed motor, 71000/52300 m³/h air flow, max. static pressure 280/150 Pa, power consumption 10000/5000 W, fan rotation speed 900/700 rpm, weight 208-230 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 1256 T | 91000 m³/h air flow, max. static pressure 300 Pa, power consumption 15000 W, fan rotation speed 900 rpm, weight 240-265 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 1256 T | ||
| 91000 m³/h air flow, max. static pressure 300 Pa, power consumption 15000 W, fan rotation speed 900 rpm, weight 240-265 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 1258 T | 67400 m³/h air flow, max. static pressure 160 Pa, power consumption 5500 W, fan rotation speed 700 rpm, weight 240-265 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 1258 T | ||
| 67400 m³/h air flow, max. static pressure 160 Pa, power consumption 5500 W, fan rotation speed 700 rpm, weight 240-265 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 1256/8 T | Two speed motor, 91000/67400 m³/h air flow, max. static pressure 300/160 Pa, power consumption 16500/7800 W, fan rotation speed 900/700 rpm, weight 240-265 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 1256/8 T | ||
| Two speed motor, 91000/67400 m³/h air flow, max. static pressure 300/160 Pa, power consumption 16500/7800 W, fan rotation speed 900/700 rpm, weight 240-265 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 1406 T | 120000 m³/h air flow, max. static pressure 340 Pa, power consumption 18500 W, fan rotation speed 900 rpm, weight 340-495 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 1406 T | ||
| 120000 m³/h air flow, max. static pressure 340 Pa, power consumption 18500 W, fan rotation speed 900 rpm, weight 340-495 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 1408 T | 89000 m³/h air flow, max. static pressure 185 Pa, power consumption 7500 W, fan rotation speed 700 rpm, weight 340-495 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 1408 T | ||
| 89000 m³/h air flow, max. static pressure 185 Pa, power consumption 7500 W, fan rotation speed 700 rpm, weight 340-495 kg, three-phase connection, 2 year WARRANTY | |||
| VIE/C 1406/8 T | Two speed motor, 120000/89000 m³/h air flow, max. static pressure 340/185 Pa, power consumption 16500/7800 W, fan rotation speed 900/700 rpm, weight 340-495 kg, three-phase connection, 2 year WARRANTY | ||
|
|
VIE/C 1406/8 T | ||
| Two speed motor, 120000/89000 m³/h air flow, max. static pressure 340/185 Pa, power consumption 16500/7800 W, fan rotation speed 900/700 rpm, weight 340-495 kg, three-phase connection, 2 year WARRANTY | |||
Izmēri
Modelis:
VIE/C 804/6 T
Modelis:
VIE/C 804/6 T
| PD-VIE support feet for mounting on flat surface | |||
|---|---|---|---|
|
PD-VIE 800 | Support feet for 800 size VIE/A, VIE/C ducted fan mounting on flat surface | |
|
|
PD-VIE 800 | ||
| Support feet for 800 size VIE/A, VIE/C ducted fan mounting on flat surface | |||
| RT-DM protection grille | |||
|
RT-DM 800 | Protection grille for 800 size VIE/A, VIE/C fans | |
|
|
RT-DM 800 | ||
| Protection grille for 800 size VIE/A, VIE/C fans | |||
