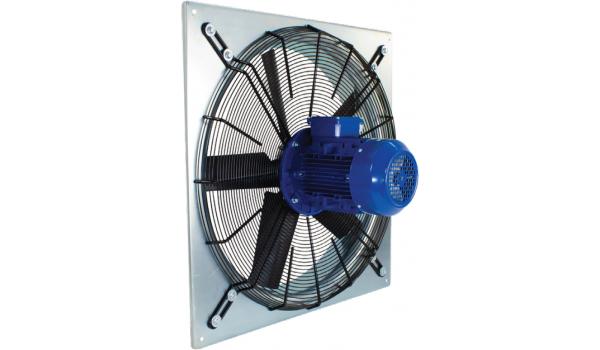

Wall mounted extraction fan, axial, square shape frame made of galvanized steel, impeller with airfoil blades made of glass reinforced polypropylene and a die-casting aluminum hub, protection guard on the motor side, air flow directed from the motor to the impeller, IP55/F protection / insulation class, 2380 m³/h air flow, max. static pressure 75 Pa, power consumption 120 W, fan rotation speed 1400 rpm, weight 11 kg, one-phase connection, 2 year WARRANTY

Ražotājs:

Vai jūs interesē šis produkts? Sazinieties ar mums:

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Latvijas tirdzniecības pārstāvja vietnieks Saņemt piedāvājumu

Noklikšķiniet uz modeļa: parādīsies tehniskā informācija, izmēri, piederumi

VHS - axial, square shape frame made of galvanized steel, impeller with airfoil blades made of glass reinforced polypropylene and a die-casting aluminum hub, protection guard on the motor side, air flow directed from the motor to the impeller, IP55/F protection / insulation class
	VHS 254 M	1050 m³/h air flow, max. static pressure 40 Pa, power consumption 120 W, fan rotation speed 1400 rpm, weight 7 kg, one-phase connection, 2 year WARRANTY
		VHS 254 M
		1050 m³/h air flow, max. static pressure 40 Pa, power consumption 120 W, fan rotation speed 1400 rpm, weight 7 kg, one-phase connection, 2 year WARRANTY
	VHS 254 T	1050 m³/h air flow, max. static pressure 40 Pa, power consumption 120 W, fan rotation speed 1400 rpm, weight 7 kg, three-phase connection, 2 year WARRANTY
		VHS 254 T
		1050 m³/h air flow, max. static pressure 40 Pa, power consumption 120 W, fan rotation speed 1400 rpm, weight 7 kg, three-phase connection, 2 year WARRANTY
	VHS 312 M	3100 m³/h air flow, max. static pressure 230 Pa, power consumption 250 W, fan rotation speed 2750 rpm, weight 11 kg, one-phase connection, 2 year WARRANTY
		VHS 312 M
		3100 m³/h air flow, max. static pressure 230 Pa, power consumption 250 W, fan rotation speed 2750 rpm, weight 11 kg, one-phase connection, 2 year WARRANTY
	VHS 314 M	2380 m³/h air flow, max. static pressure 75 Pa, power consumption 120 W, fan rotation speed 1400 rpm, weight 11 kg, one-phase connection, 2 year WARRANTY
		VHS 314 M
		2380 m³/h air flow, max. static pressure 75 Pa, power consumption 120 W, fan rotation speed 1400 rpm, weight 11 kg, one-phase connection, 2 year WARRANTY
	VHS 312 T	3100 m³/h air flow, max. static pressure 230 Pa, power consumption 250 W, fan rotation speed 2750 rpm, weight 11 kg, three-phase connection, 2 year WARRANTY
		VHS 312 T
		3100 m³/h air flow, max. static pressure 230 Pa, power consumption 250 W, fan rotation speed 2750 rpm, weight 11 kg, three-phase connection, 2 year WARRANTY
	VHS 314 T	2380 m³/h air flow, max. static pressure 75 Pa, power consumption 120 W, fan rotation speed 1400 rpm, weight 11 kg, three-phase connection, 2 year WARRANTY
		VHS 314 T
		2380 m³/h air flow, max. static pressure 75 Pa, power consumption 120 W, fan rotation speed 1400 rpm, weight 11 kg, three-phase connection, 2 year WARRANTY
	VHS 354 M	3300 m³/h air flow, max. static pressure 95 Pa, power consumption 180 W, fan rotation speed 1400 rpm, weight 12 kg, one-phase connection, 2 year WARRANTY
		VHS 354 M
		3300 m³/h air flow, max. static pressure 95 Pa, power consumption 180 W, fan rotation speed 1400 rpm, weight 12 kg, one-phase connection, 2 year WARRANTY
	VHS 354 T	3300 m³/h air flow, max. static pressure 95 Pa, power consumption 180 W, fan rotation speed 1400 rpm, weight 12 kg, three-phase connection, 2 year WARRANTY
		VHS 354 T
		3300 m³/h air flow, max. static pressure 95 Pa, power consumption 180 W, fan rotation speed 1400 rpm, weight 12 kg, three-phase connection, 2 year WARRANTY
	VHS 356 T	2060 m³/h air flow, max. static pressure 40 Pa, power consumption 120 W, fan rotation speed 900 rpm, weight 12 kg, three-phase connection, 2 year WARRANTY
		VHS 356 T
		2060 m³/h air flow, max. static pressure 40 Pa, power consumption 120 W, fan rotation speed 900 rpm, weight 12 kg, three-phase connection, 2 year WARRANTY
	VHS 404 M	4400 m³/h air flow, max. static pressure 120 Pa, power consumption 250 W, fan rotation speed 1400 rpm, weight 14 kg, one-phase connection, 2 year WARRANTY
		VHS 404 M
		4400 m³/h air flow, max. static pressure 120 Pa, power consumption 250 W, fan rotation speed 1400 rpm, weight 14 kg, one-phase connection, 2 year WARRANTY
	VHS 404 T	4400 m³/h air flow, max. static pressure 120 Pa, power consumption 250 W, fan rotation speed 1400 rpm, weight 14 kg, three-phase connection, 2 year WARRANTY
		VHS 404 T
		4400 m³/h air flow, max. static pressure 120 Pa, power consumption 250 W, fan rotation speed 1400 rpm, weight 14 kg, three-phase connection, 2 year WARRANTY
	VHS 406 T	2900 m³/h air flow, max. static pressure 50 Pa, power consumption 120 W, fan rotation speed 900 rpm, weight 14 kg, three-phase connection, 2 year WARRANTY
	VHS 406 T
	2900 m³/h air flow, max. static pressure 50 Pa, power consumption 120 W, fan rotation speed 900 rpm, weight 14 kg, three-phase connection, 2 year WARRANTY
VHS 454 M	7100 m³/h air flow, max. static pressure 125 Pa, power consumption 370 W, fan rotation speed 1400 rpm, weight 18 kg, one-phase connection, 2 year WARRANTY
	VHS 454 M
	7100 m³/h air flow, max. static pressure 125 Pa, power consumption 370 W, fan rotation speed 1400 rpm, weight 18 kg, one-phase connection, 2 year WARRANTY
VHS 454 T	7100 m³/h air flow, max. static pressure 125 Pa, power consumption 370 W, fan rotation speed 1400 rpm, weight 18 kg, three-phase connection, 2 year WARRANTY
	VHS 454 T
	7100 m³/h air flow, max. static pressure 125 Pa, power consumption 370 W, fan rotation speed 1400 rpm, weight 18 kg, three-phase connection, 2 year WARRANTY
VHS 456 T	4550 m³/h air flow, max. static pressure 50 Pa, power consumption 120 W, fan rotation speed 900 rpm, weight 18 kg, three-phase connection, 2 year WARRANTY
	VHS 456 T
	4550 m³/h air flow, max. static pressure 50 Pa, power consumption 120 W, fan rotation speed 900 rpm, weight 18 kg, three-phase connection, 2 year WARRANTY
VHS 454/6 T	Two speed motor, 7100/4550 m³/h air flow, max. static pressure 125/50 Pa, power consumption 370/120 W, fan rotation speed 1400/900 rpm, weight 18 kg, three-phase connection, 2 year WARRANTY
	VHS 454/6 T
	Two speed motor, 7100/4550 m³/h air flow, max. static pressure 125/50 Pa, power consumption 370/120 W, fan rotation speed 1400/900 rpm, weight 18 kg, three-phase connection, 2 year WARRANTY
VHS 504 M	8000 m³/h air flow, max. static pressure 120 Pa, power consumption 370 W, fan rotation speed 1400 rpm, weight 22 kg, one-phase connection, 2 year WARRANTY
	VHS 504 M
	8000 m³/h air flow, max. static pressure 120 Pa, power consumption 370 W, fan rotation speed 1400 rpm, weight 22 kg, one-phase connection, 2 year WARRANTY
VHS 504 T	7900 m³/h air flow, max. static pressure 150 Pa, power consumption 370 W, fan rotation speed 1400 rpm, weight 22 kg, three-phase connection, 2 year WARRANTY
	VHS 504 T
	7900 m³/h air flow, max. static pressure 150 Pa, power consumption 370 W, fan rotation speed 1400 rpm, weight 22 kg, three-phase connection, 2 year WARRANTY
VHS 506 T	5200 m³/h air flow, max. static pressure 65 Pa, power consumption 180 W, fan rotation speed 900 rpm, weight 22 kg, three-phase connection, 2 year WARRANTY
	VHS 506 T
	5200 m³/h air flow, max. static pressure 65 Pa, power consumption 180 W, fan rotation speed 900 rpm, weight 22 kg, three-phase connection, 2 year WARRANTY
VHS 508 T	4000 m³/h air flow, max. static pressure 40 Pa, power consumption 120 W, fan rotation speed 700 rpm, weight 22 kg, three-phase connection, 2 year WARRANTY
	VHS 508 T
	4000 m³/h air flow, max. static pressure 40 Pa, power consumption 120 W, fan rotation speed 700 rpm, weight 22 kg, three-phase connection, 2 year WARRANTY
VHS 504/6 T	Two speed motor, 7900/5200 m³/h air flow, max. static pressure 150/65 Pa, power consumption 550/180 W, fan rotation speed 1400/900 rpm, weight 22 kg, three-phase connection, 2 year WARRANTY
	VHS 504/6 T
	Two speed motor, 7900/5200 m³/h air flow, max. static pressure 150/65 Pa, power consumption 550/180 W, fan rotation speed 1400/900 rpm, weight 22 kg, three-phase connection, 2 year WARRANTY
VHS 564 M	10200 m³/h air flow, max. static pressure 140 Pa, power consumption 550 W, fan rotation speed 1400 rpm, weight 25 kg, one-phase connection, 2 year WARRANTY
	VHS 564 M
	10200 m³/h air flow, max. static pressure 140 Pa, power consumption 550 W, fan rotation speed 1400 rpm, weight 25 kg, one-phase connection, 2 year WARRANTY
VHS 564 T	10300 m³/h air flow, max. static pressure 200 Pa, power consumption 550 W, fan rotation speed 1400 rpm, weight 25 kg, three-phase connection, 2 year WARRANTY
	VHS 564 T
	10300 m³/h air flow, max. static pressure 200 Pa, power consumption 550 W, fan rotation speed 1400 rpm, weight 25 kg, three-phase connection, 2 year WARRANTY
VHS 566 T	6300 m³/h air flow, max. static pressure 70 Pa, power consumption 180 W, fan rotation speed 900 rpm, weight 25 kg, three-phase connection, 2 year WARRANTY
	VHS 566 T
	6300 m³/h air flow, max. static pressure 70 Pa, power consumption 180 W, fan rotation speed 900 rpm, weight 25 kg, three-phase connection, 2 year WARRANTY
VHS 568 T	4950 m³/h air flow, max. static pressure 45 Pa, power consumption 120 W, fan rotation speed 700 rpm, weight 25 kg, three-phase connection, 2 year WARRANTY
	VHS 568 T
	4950 m³/h air flow, max. static pressure 45 Pa, power consumption 120 W, fan rotation speed 700 rpm, weight 25 kg, three-phase connection, 2 year WARRANTY
VHS 564/6 T	Two speed motor, 10300/6300 m³/h air flow, max. static pressure 200/70 Pa, power consumption 810/280 W, fan rotation speed 1400/900 rpm, weight 25 kg, three-phase connection, 2 year WARRANTY
	VHS 564/6 T
	Two speed motor, 10300/6300 m³/h air flow, max. static pressure 200/70 Pa, power consumption 810/280 W, fan rotation speed 1400/900 rpm, weight 25 kg, three-phase connection, 2 year WARRANTY
VHS 634 T	17100 m³/h air flow, max. static pressure 240 Pa, power consumption 1500 W, fan rotation speed 1400 rpm, weight 26 kg, three-phase connection, 2 year WARRANTY
	VHS 634 T
	17100 m³/h air flow, max. static pressure 240 Pa, power consumption 1500 W, fan rotation speed 1400 rpm, weight 26 kg, three-phase connection, 2 year WARRANTY
VHS 636 T	10600 m³/h air flow, max. static pressure 95 Pa, power consumption 370 W, fan rotation speed 900 rpm, weight 26 kg, three-phase connection, 2 year WARRANTY
	VHS 636 T
	10600 m³/h air flow, max. static pressure 95 Pa, power consumption 370 W, fan rotation speed 900 rpm, weight 26 kg, three-phase connection, 2 year WARRANTY
VHS 638 T	8000 m³/h air flow, max. static pressure 55 Pa, power consumption 180 W, fan rotation speed 700 rpm, weight 26 kg, three-phase connection, 2 year WARRANTY
	VHS 638 T
	8000 m³/h air flow, max. static pressure 55 Pa, power consumption 180 W, fan rotation speed 700 rpm, weight 26 kg, three-phase connection, 2 year WARRANTY
VHS 634/6 T	Two speed motor, 17100/10600 m³/h air flow, max. static pressure 240/95 Pa, power consumption 1700/600 W, fan rotation speed 1400/900 rpm, weight 26 kg, three-phase connection, 2 year WARRANTY
	VHS 634/6 T
	Two speed motor, 17100/10600 m³/h air flow, max. static pressure 240/95 Pa, power consumption 1700/600 W, fan rotation speed 1400/900 rpm, weight 26 kg, three-phase connection, 2 year WARRANTY
VHS 714 T	21800 m³/h air flow, max. static pressure 270 Pa, power consumption 2200 W, fan rotation speed 1400 rpm, weight 35 kg, three-phase connection, 2 year WARRANTY
	VHS 714 T
	21800 m³/h air flow, max. static pressure 270 Pa, power consumption 2200 W, fan rotation speed 1400 rpm, weight 35 kg, three-phase connection, 2 year WARRANTY
VHS 716 T	13500 m³/h air flow, max. static pressure 105 Pa, power consumption 550 W, fan rotation speed 900 rpm, weight 35 kg, three-phase connection, 2 year WARRANTY
	VHS 716 T
	13500 m³/h air flow, max. static pressure 105 Pa, power consumption 550 W, fan rotation speed 900 rpm, weight 35 kg, three-phase connection, 2 year WARRANTY
VHS 718 T	10200 m³/h air flow, max. static pressure 60 Pa, power consumption 250 W, fan rotation speed 700 rpm, weight 35 kg, three-phase connection, 2 year WARRANTY
	VHS 718 T
	10200 m³/h air flow, max. static pressure 60 Pa, power consumption 250 W, fan rotation speed 700 rpm, weight 35 kg, three-phase connection, 2 year WARRANTY
VHS 714/6 T	Two speed motor, 21800/13500 m³/h air flow, max. static pressure 270/105 Pa, power consumption 2200/750 W, fan rotation speed 1400/900 rpm, weight 35 kg, three-phase connection, 2 year WARRANTY
	VHS 714/6 T
	Two speed motor, 21800/13500 m³/h air flow, max. static pressure 270/105 Pa, power consumption 2200/750 W, fan rotation speed 1400/900 rpm, weight 35 kg, three-phase connection, 2 year WARRANTY

Izmēri

Modelis: VHS 314 M

SG-VHS square shape wall mounted gravity shutters
	SG-VHS 310	Square shape gravity shutter for 310 size VHS wall mounted axial fans
	SG-VHS 310
	Square shape gravity shutter for 310 size VHS wall mounted axial fans
RT-DM protection grille
	RT-DM 310	Protection grille for 310 size VIE/A, VIE/C, VHS fans
	RT-DM 310
	Protection grille for 310 size VIE/A, VIE/C, VHS fans
Fan speed controllers
	RMD 4,5	Digital fan speed controller for single-phase motors, IP56 protection class, max. current 4.5 A
		RMD 4,5
Digital fan speed controller for single-phase motors, IP56 protection class, max. current 4.5 A
RMD 10		Digital fan speed controller for single-phase motors, IP50 protection class, max. current 10 A
	RMD 10
	Digital fan speed controller for single-phase motors, IP50 protection class, max. current 10 A
	RMV4	Analog fan speed controller for single-phase motors, IP55 protection class, max. current 4.5 A
		RMV4
		Analog fan speed controller for single-phase motors, IP55 protection class, max. current 4.5 A
RMV8	Analog fan speed controller for single-phase motors, IP50 protection class, max. current 8 A
	RMV8
	Analog fan speed controller for single-phase motors, IP50 protection class, max. current 8 A
RMV10	Analog fan speed controller for single-phase motors, IP50 protection class, max. current 10 A
	RMV10
	Analog fan speed controller for single-phase motors, IP50 protection class, max. current 10 A
