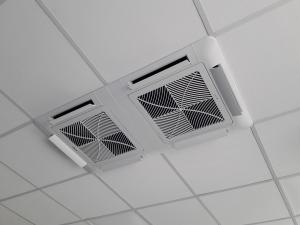

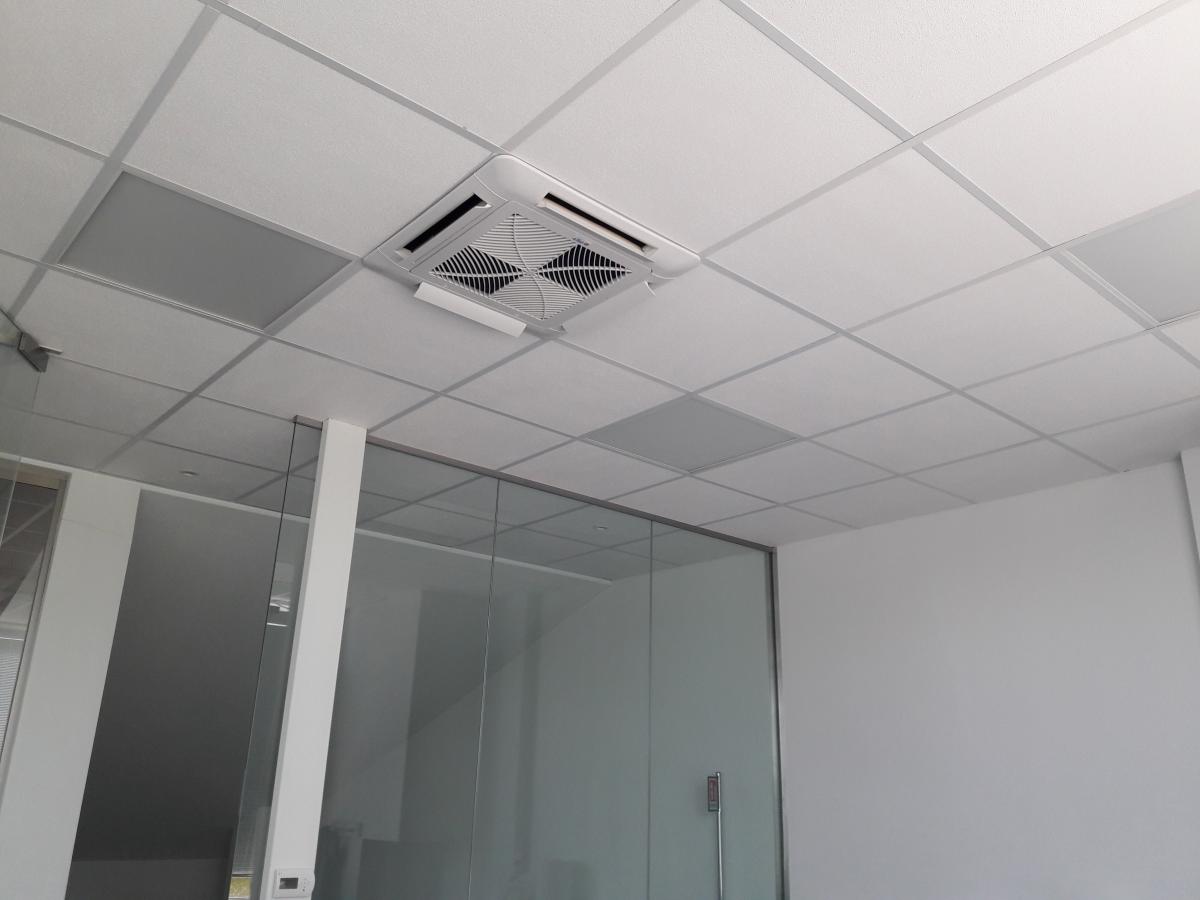

Fan coil, cassette, for mounting to the suspended ceiling, EC type ebm‑papst fan, data is provided for the fan operating at three speeds at 2/6/10 V, galvanized steel casing with anti-condensation coating and sound-absorbing material, integrated condensate pump, G3 class air filter, RAL9003 white ABS plastic diffuser, heating capacity is calculated at 70/60°C water and 20°C air temperature, cooling capacity at 7/12°C water and 27°C air temperature, 4 pipe connection, 2.73/5.08/7.19 kW heating capacity in 1 row heat exchanger and 1.58/3.30/4.82 kW cooling capacity in 2 row heat exchanger, air flow 250/590/980 m³/h, sound pressure level 18/34/48 dB(A), max. fan power 45 W, ceiling hole 600x600xH250 mm, weight 19.5 kg, 2 year WARRANTY

Ražotājs:

Vai jūs interesē šis produkts? Sazinieties ar mums:

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Latvijas tirdzniecības pārstāvja vietnieks Saņemt piedāvājumu

Modeļu specifikācijas
Dokumentācija
Aksesuāri, saistītie produkti
Lejupielādējiet PDF

Noklikšķiniet uz modeļa: parādīsies tehniskā informācija, izmēri, piederumi

PS-CL 2T - cassette, for mounting to the suspended ceiling, three-speed AC type ebm‑papst fan, galvanized steel casing with anti-condensation coating and sound-absorbing material, integrated condensate pump, G3 class air filter, RAL9003 white ABS plastic diffuser, heating capacity is calculated at 50°C water and 20°C air temperature, cooling capacity at 7/12°C water and 27°C air temperature, 2 pipe connection
	PS-CL 2T 050/2R	2.42/2.72/3.41 kW heating capacity or 1.45/1.56/2.39 kW cooling capacity in 2 row heat exchanger, air flow 340/400/500 m³/h, sound pressure level 23/32/39 dB(A), max. fan power 35 W, ceiling hole 600x600xH250 mm, weight 18 kg, 2 year WARRANTY
		PS-CL 2T 050/2R
		2.42/2.72/3.41 kW heating capacity or 1.45/1.56/2.39 kW cooling capacity in 2 row heat exchanger, air flow 340/400/500 m³/h, sound pressure level 23/32/39 dB(A), max. fan power 35 W, ceiling hole 600x600xH250 mm, weight 18 kg, 2 year WARRANTY
	PS-CL 2T 070/2R	2.45/3.47/4.78 kW heating capacity or 1.48/2.47/3.51 kW cooling capacity in 2 row heat exchanger, air flow 340/500/750 m³/h, sound pressure level 24/36/44 dB(A), max. fan power 63 W, ceiling hole 600x600xH250 mm, weight 18 kg, 2 year WARRANTY
		PS-CL 2T 070/2R
		2.45/3.47/4.78 kW heating capacity or 1.48/2.47/3.51 kW cooling capacity in 2 row heat exchanger, air flow 340/500/750 m³/h, sound pressure level 24/36/44 dB(A), max. fan power 63 W, ceiling hole 600x600xH250 mm, weight 18 kg, 2 year WARRANTY
PS-CL 2T 080/3R	3.69/4.06/6.25 kW heating capacity or 2.98/3.29/5.06 kW cooling capacity in 3 row heat exchanger, air flow 430/480/800 m³/h, sound pressure level 31/37/45 dB(A), max. fan power 75 W, ceiling hole 600x600xH250 mm, weight 19 kg, 2 year WARRANTY
	PS-CL 2T 080/3R
	3.69/4.06/6.25 kW heating capacity or 2.98/3.29/5.06 kW cooling capacity in 3 row heat exchanger, air flow 430/480/800 m³/h, sound pressure level 31/37/45 dB(A), max. fan power 75 W, ceiling hole 600x600xH250 mm, weight 19 kg, 2 year WARRANTY
PS-CL 2T 090/3R	3.73/5.04/7.03 kW heating capacity or 3.04/4.13/5.72 kW cooling capacity in 3 row heat exchanger, air flow 430/610/910 m³/h, sound pressure level 32/41/47 dB(A), max. fan power 78 W, ceiling hole 600x600xH250 mm, weight 19 kg, 2 year WARRANTY
	PS-CL 2T 090/3R
	3.73/5.04/7.03 kW heating capacity or 3.04/4.13/5.72 kW cooling capacity in 3 row heat exchanger, air flow 430/610/910 m³/h, sound pressure level 32/41/47 dB(A), max. fan power 78 W, ceiling hole 600x600xH250 mm, weight 19 kg, 2 year WARRANTY
PS-CL 2T 080/4R	4.06/4.50/7.15 kW heating capacity or 3.64/3.99/6.16 kW cooling capacity in 4 row heat exchanger, air flow 430/480/800 m³/h, sound pressure level 31/37/45 dB(A), max. fan power 75 W, ceiling hole 600x600xH250 mm, weight 19 kg, 2 year WARRANTY
	PS-CL 2T 080/4R
	4.06/4.50/7.15 kW heating capacity or 3.64/3.99/6.16 kW cooling capacity in 4 row heat exchanger, air flow 430/480/800 m³/h, sound pressure level 31/37/45 dB(A), max. fan power 75 W, ceiling hole 600x600xH250 mm, weight 19 kg, 2 year WARRANTY
PS-CL 2T 090/4R	4.07/5.62/8.06 kW heating capacity or 3.61/4.87/6.84 kW cooling capacity in 4 row heat exchanger, air flow 430/610/910 m³/h, sound pressure level 32/41/47 dB(A), max. fan power 78 W, ceiling hole 600x600xH250 mm, weight 19 kg, 2 year WARRANTY
	PS-CL 2T 090/4R
	4.07/5.62/8.06 kW heating capacity or 3.61/4.87/6.84 kW cooling capacity in 4 row heat exchanger, air flow 430/610/910 m³/h, sound pressure level 32/41/47 dB(A), max. fan power 78 W, ceiling hole 600x600xH250 mm, weight 19 kg, 2 year WARRANTY
	PS-CL 2T 100/3R	6.42/6.95/8.43 kW heating capacity or 5.55/5.99/7.21 kW cooling capacity in 3 row heat exchanger, air flow 730/800/1000 m³/h, sound pressure level 26/32/41 dB(A), max. fan power 85 W, ceiling hole 1200x600xH250 mm, weight 38 kg, delivered with auxiliary drain pan for valve, 2 year WARRANTY
		PS-CL 2T 100/3R
		6.42/6.95/8.43 kW heating capacity or 5.55/5.99/7.21 kW cooling capacity in 3 row heat exchanger, air flow 730/800/1000 m³/h, sound pressure level 26/32/41 dB(A), max. fan power 85 W, ceiling hole 1200x600xH250 mm, weight 38 kg, delivered with auxiliary drain pan for valve, 2 year WARRANTY
	PS-CL 2T 120/3R	7.03/8.53/10.46 kW heating capacity or 6.01/7.26/8.83 kW cooling capacity in 3 row heat exchanger, air flow 800/1000/1270 m³/h, sound pressure level 32/41/47 dB(A), max. fan power 110 W, ceiling hole 1200x600xH250 mm, weight 38 kg, delivered with auxiliary drain pan for valve, 2 year WARRANTY
	PS-CL 2T 120/3R
	7.03/8.53/10.46 kW heating capacity or 6.01/7.26/8.83 kW cooling capacity in 3 row heat exchanger, air flow 800/1000/1270 m³/h, sound pressure level 32/41/47 dB(A), max. fan power 110 W, ceiling hole 1200x600xH250 mm, weight 38 kg, delivered with auxiliary drain pan for valve, 2 year WARRANTY
PS-CL 2T 150/3R	7.42/9.49/12.72 kW heating capacity or 6.47/8.21/10.85 kW cooling capacity in 3 row heat exchanger, air flow 830/1100/1550 m³/h, sound pressure level 33/45/51 dB(A), max. fan power 150 W, ceiling hole 1200x600xH250 mm, weight 38 kg, delivered with auxiliary drain pan for valve, 2 year WARRANTY
	PS-CL 2T 150/3R
	7.42/9.49/12.72 kW heating capacity or 6.47/8.21/10.85 kW cooling capacity in 3 row heat exchanger, air flow 830/1100/1550 m³/h, sound pressure level 33/45/51 dB(A), max. fan power 150 W, ceiling hole 1200x600xH250 mm, weight 38 kg, delivered with auxiliary drain pan for valve, 2 year WARRANTY
PS-CL 2T 150/4R	7.98/10.38/14.22 kW heating capacity or 7.52/9.63/12.99 kW cooling capacity in 4 row heat exchanger, air flow 830/1100/1550 m³/h, sound pressure level 33/45/51 dB(A), max. fan power 150 W, ceiling hole 1200x600xH250 mm, weight 38 kg, delivered with auxiliary drain pan for valve, 2 year WARRANTY
	PS-CL 2T 150/4R
	7.98/10.38/14.22 kW heating capacity or 7.52/9.63/12.99 kW cooling capacity in 4 row heat exchanger, air flow 830/1100/1550 m³/h, sound pressure level 33/45/51 dB(A), max. fan power 150 W, ceiling hole 1200x600xH250 mm, weight 38 kg, delivered with auxiliary drain pan for valve, 2 year WARRANTY
PS-CL 4T - cassette, for mounting to the suspended ceiling, three-speed AC type ebm‑papst fan, galvanized steel casing with anti-condensation coating and sound-absorbing material, integrated condensate pump, G3 class air filter, RAL9003 white ABS plastic diffuser, heating capacity is calculated at 70/60°C water and 20°C air temperature, cooling capacity at 7/12°C water and 27°C air temperature, 4 pipe connection
	PS-CL 4T 054/2R+1	3.31/3.66/4.77 kW heating capacity in 1 row heat exchanger and 2.01/2.23/2.97 kW cooling capacity in 2 row heat exchanger, air flow 340/390/570 m³/h, sound pressure level 23/32/39 dB(A), max. fan power 35 W, ceiling hole 600x600xH250 mm, weight 19.5 kg, 2 year WARRANTY
		PS-CL 4T 054/2R+1
		3.31/3.66/4.77 kW heating capacity in 1 row heat exchanger and 2.01/2.23/2.97 kW cooling capacity in 2 row heat exchanger, air flow 340/390/570 m³/h, sound pressure level 23/32/39 dB(A), max. fan power 35 W, ceiling hole 600x600xH250 mm, weight 19.5 kg, 2 year WARRANTY
	PS-CL 4T 084/2R+1	4.06/4.39/6.27 kW heating capacity in 1 row heat exchanger and 2.58/2.80/4.08 kW cooling capacity in 2 row heat exchanger, air flow 430/480/800 m³/h, sound pressure level 31/37/45 dB(A), max. fan power 75 W, ceiling hole 600x600xH250 mm, weight 19.5 kg, 2 year WARRANTY
	PS-CL 4T 084/2R+1
	4.06/4.39/6.27 kW heating capacity in 1 row heat exchanger and 2.58/2.80/4.08 kW cooling capacity in 2 row heat exchanger, air flow 430/480/800 m³/h, sound pressure level 31/37/45 dB(A), max. fan power 75 W, ceiling hole 600x600xH250 mm, weight 19.5 kg, 2 year WARRANTY
PS-CL 4T 094/2R+1	4.06/5.19/6.84 kW heating capacity in 1 row heat exchanger and 2.57/3.38/4.56 kW cooling capacity in 2 row heat exchanger, air flow 430/610/910 m³/h, sound pressure level 32/41/47 dB(A), max. fan power 78 W, ceiling hole 600x600xH250 mm, weight 19.5 kg, 2 year WARRANTY
	PS-CL 4T 094/2R+1
	4.06/5.19/6.84 kW heating capacity in 1 row heat exchanger and 2.57/3.38/4.56 kW cooling capacity in 2 row heat exchanger, air flow 430/610/910 m³/h, sound pressure level 32/41/47 dB(A), max. fan power 78 W, ceiling hole 600x600xH250 mm, weight 19.5 kg, 2 year WARRANTY
PS-CL 4T 094/3R+1	4.06/5.19/6.84 kW heating capacity in 1 row heat exchanger and 3.03/4.13/5.72 kW cooling capacity in 3 row heat exchanger, air flow 430/610/910 m³/h, sound pressure level 32/41/47 dB(A), max. fan power 78 W, ceiling hole 600x600xH250 mm, weight 19.5 kg, 2 year WARRANTY
	PS-CL 4T 094/3R+1
	4.06/5.19/6.84 kW heating capacity in 1 row heat exchanger and 3.03/4.13/5.72 kW cooling capacity in 3 row heat exchanger, air flow 430/610/910 m³/h, sound pressure level 32/41/47 dB(A), max. fan power 78 W, ceiling hole 600x600xH250 mm, weight 19.5 kg, 2 year WARRANTY
	PS-CL 4T 124/2R+1	7.43/8.69/10.26 kW heating capacity in 1 row heat exchanger and 4.90/5.80/6.93 kW cooling capacity in 2 row heat exchanger, air flow 800/1000/1270 m³/h, sound pressure level 32/41/47 dB(A), max. fan power 110 W, ceiling hole 1200x600xH250 mm, weight 39 kg, delivered with auxiliary drain pan for valve, 2 year WARRANTY
		PS-CL 4T 124/2R+1
		7.43/8.69/10.26 kW heating capacity in 1 row heat exchanger and 4.90/5.80/6.93 kW cooling capacity in 2 row heat exchanger, air flow 800/1000/1270 m³/h, sound pressure level 32/41/47 dB(A), max. fan power 110 W, ceiling hole 1200x600xH250 mm, weight 39 kg, delivered with auxiliary drain pan for valve, 2 year WARRANTY
PS-CL 4T 154/2R+1	7.87/9.06/12.17 kW heating capacity in 1 row heat exchanger and 5.38/6.66/8.59 kW cooling capacity in 2 row heat exchanger, air flow 830/1100/1550 m³/h, sound pressure level 33/45/51 dB(A), max. fan power 150 W, ceiling hole 1200x600xH250 mm, weight 39 kg, delivered with auxiliary drain pan for valve, 2 year WARRANTY
	PS-CL 4T 154/2R+1
	7.87/9.06/12.17 kW heating capacity in 1 row heat exchanger and 5.38/6.66/8.59 kW cooling capacity in 2 row heat exchanger, air flow 830/1100/1550 m³/h, sound pressure level 33/45/51 dB(A), max. fan power 150 W, ceiling hole 1200x600xH250 mm, weight 39 kg, delivered with auxiliary drain pan for valve, 2 year WARRANTY
PS-CL 4T 154/3R+1	7.87/9.60/12.17 kW heating capacity in 1 row heat exchanger and 6.50/8.21/10.82 kW cooling capacity in 3 row heat exchanger, air flow 830/1100/1550 m³/h, sound pressure level 33/45/51 dB(A), max. fan power 150 W, ceiling hole 1200x600xH250 mm, weight 39 kg, delivered with auxiliary drain pan for valve, 2 year WARRANTY
	PS-CL 4T 154/3R+1
	7.87/9.60/12.17 kW heating capacity in 1 row heat exchanger and 6.50/8.21/10.82 kW cooling capacity in 3 row heat exchanger, air flow 830/1100/1550 m³/h, sound pressure level 33/45/51 dB(A), max. fan power 150 W, ceiling hole 1200x600xH250 mm, weight 39 kg, delivered with auxiliary drain pan for valve, 2 year WARRANTY
PS-CLE 2T - cassette, for mounting to the suspended ceiling, EC type ebm‑papst fan, data is provided for the fan operating at three speeds at 2/6/10 V, galvanized steel casing with anti-condensation coating and sound-absorbing material, integrated condensate pump, G3 class air filter, RAL9003 white ABS plastic diffuser, heating capacity is calculated at 50°C water and 20°C air temperature, cooling capacity at 7/12°C water and 27°C air temperature, 2 pipe connection
	PS-CLE 2T 070/2R	1.94/3.96/5.85 kW heating capacity or 1.27/2.88/4.32 kW cooling capacity in 2 row heat exchanger, air flow 250/590/980 m³/h, sound pressure level 18/34/48 dB(A), max. fan power 41 W, ceiling hole 600x600xH250 mm, weight 18 kg, 2 year WARRANTY
		PS-CLE 2T 070/2R
		1.94/3.96/5.85 kW heating capacity or 1.27/2.88/4.32 kW cooling capacity in 2 row heat exchanger, air flow 250/590/980 m³/h, sound pressure level 18/34/48 dB(A), max. fan power 41 W, ceiling hole 600x600xH250 mm, weight 18 kg, 2 year WARRANTY
PS-CLE 2T 090/3R	2.29/4.90/7.47 kW heating capacity or 1.89/4.01/6.07 kW cooling capacity in 3 row heat exchanger, air flow 250/590/980 m³/h, sound pressure level 18/34/48 dB(A), max. fan power 45 W, ceiling hole 600x600xH250 mm, weight 19 kg, 2 year WARRANTY
	PS-CLE 2T 090/3R
	2.29/4.90/7.47 kW heating capacity or 1.89/4.01/6.07 kW cooling capacity in 3 row heat exchanger, air flow 250/590/980 m³/h, sound pressure level 18/34/48 dB(A), max. fan power 45 W, ceiling hole 600x600xH250 mm, weight 19 kg, 2 year WARRANTY
PS-CLE 2T 090/4R	2.43/5.46/8.60 kW heating capacity or 2.17/4.74/7.29 kW cooling capacity in 4 row heat exchanger, air flow 250/590/980 m³/h, sound pressure level 18/34/48 dB(A), max. fan power 45 W, ceiling hole 600x600xH250 mm, weight 19 kg, 2 year WARRANTY
	PS-CLE 2T 090/4R
	2.43/5.46/8.60 kW heating capacity or 2.17/4.74/7.29 kW cooling capacity in 4 row heat exchanger, air flow 250/590/980 m³/h, sound pressure level 18/34/48 dB(A), max. fan power 45 W, ceiling hole 600x600xH250 mm, weight 19 kg, 2 year WARRANTY
	PS-CLE 2T 150/3R	7.34/11.39/13.20 kW heating capacity or 6.41/9.77/11.24 kW cooling capacity in 3 row heat exchanger, air flow 820/1360/1620 m³/h, sound pressure level 26/44/51 dB(A), max. fan power 85 W, ceiling hole 1200x600xH250 mm, weight 38 kg, delivered with auxiliary drain pan for valve, 2 year WARRANTY
		PS-CLE 2T 150/3R
7.34/11.39/13.20 kW heating capacity or 6.41/9.77/11.24 kW cooling capacity in 3 row heat exchanger, air flow 820/1360/1620 m³/h, sound pressure level 26/44/51 dB(A), max. fan power 85 W, ceiling hole 1200x600xH250 mm, weight 38 kg, delivered with auxiliary drain pan for valve, 2 year WARRANTY
PS-CLE 2T 150/4R		7.88/12.63/14.80 kW heating capacity or 7.44/11.60/13.49 kW cooling capacity in 4 row heat exchanger, air flow 820/1360/1620 m³/h, sound pressure level 26/44/51 dB(A), max. fan power 85 W, ceiling hole 1200x600xH250 mm, weight 38 kg, delivered with auxiliary drain pan for valve, 2 year WARRANTY
	PS-CLE 2T 150/4R
	7.88/12.63/14.80 kW heating capacity or 7.44/11.60/13.49 kW cooling capacity in 4 row heat exchanger, air flow 820/1360/1620 m³/h, sound pressure level 26/44/51 dB(A), max. fan power 85 W, ceiling hole 1200x600xH250 mm, weight 38 kg, delivered with auxiliary drain pan for valve, 2 year WARRANTY
PS-CLE 4T - cassette, for mounting to the suspended ceiling, EC type ebm‑papst fan, data is provided for the fan operating at three speeds at 2/6/10 V, galvanized steel casing with anti-condensation coating and sound-absorbing material, integrated condensate pump, G3 class air filter, RAL9003 white ABS plastic diffuser, heating capacity is calculated at 70/60°C water and 20°C air temperature, cooling capacity at 7/12°C water and 27°C air temperature, 4 pipe connection
	PS-CLE 4T 094/2R+1	2.73/5.08/7.19 kW heating capacity in 1 row heat exchanger and 1.58/3.30/4.82 kW cooling capacity in 2 row heat exchanger, air flow 250/590/980 m³/h, sound pressure level 18/34/48 dB(A), max. fan power 45 W, ceiling hole 600x600xH250 mm, weight 19.5 kg, 2 year WARRANTY
		PS-CLE 4T 094/2R+1
2.73/5.08/7.19 kW heating capacity in 1 row heat exchanger and 1.58/3.30/4.82 kW cooling capacity in 2 row heat exchanger, air flow 250/590/980 m³/h, sound pressure level 18/34/48 dB(A), max. fan power 45 W, ceiling hole 600x600xH250 mm, weight 19.5 kg, 2 year WARRANTY
PS-CLE 4T 094/3R+1		2.73/5.08/7.19 kW heating capacity in 1 row heat exchanger and 2.05/4.26/6.39 kW cooling capacity in 3 row heat exchanger, air flow 250/590/980 m³/h, sound pressure level 18/34/48 dB(A), max. fan power 45 W, ceiling hole 600x600xH250 mm, weight 19.5 kg, 2 year WARRANTY
	PS-CLE 4T 094/3R+1
	2.73/5.08/7.19 kW heating capacity in 1 row heat exchanger and 2.05/4.26/6.39 kW cooling capacity in 3 row heat exchanger, air flow 250/590/980 m³/h, sound pressure level 18/34/48 dB(A), max. fan power 45 W, ceiling hole 600x600xH250 mm, weight 19.5 kg, 2 year WARRANTY
	PS-CLE 4T 154/2R+1	7.80/11.12/12.54 kW heating capacity in 1 row heat exchanger and 5.33/7.80/8.87 kW cooling capacity in 2 row heat exchanger, air flow 820/1360/1620 m³/h, sound pressure level 26/44/51 dB(A), max. fan power 85 W, ceiling hole 1200x600xH250 mm, weight 39 kg, delivered with auxiliary drain pan for valve, 2 year WARRANTY
		PS-CLE 4T 154/2R+1
7.80/11.12/12.54 kW heating capacity in 1 row heat exchanger and 5.33/7.80/8.87 kW cooling capacity in 2 row heat exchanger, air flow 820/1360/1620 m³/h, sound pressure level 26/44/51 dB(A), max. fan power 85 W, ceiling hole 1200x600xH250 mm, weight 39 kg, delivered with auxiliary drain pan for valve, 2 year WARRANTY
PS-CLE 4T 154/3R+1		7.80/11.12/12.54 kW heating capacity in 1 row heat exchanger and 6.43/9.75/11.20 kW cooling capacity in 3 row heat exchanger, air flow 820/1360/1620 m³/h, sound pressure level 26/44/51 dB(A), max. fan power 85 W, ceiling hole 1200x600xH250 mm, weight 39 kg, delivered with auxiliary drain pan for valve, 2 year WARRANTY
	PS-CLE 4T 154/3R+1
	7.80/11.12/12.54 kW heating capacity in 1 row heat exchanger and 6.43/9.75/11.20 kW cooling capacity in 3 row heat exchanger, air flow 820/1360/1620 m³/h, sound pressure level 26/44/51 dB(A), max. fan power 85 W, ceiling hole 1200x600xH250 mm, weight 39 kg, delivered with auxiliary drain pan for valve, 2 year WARRANTY
PS-CLES 2T - cassette, for mounting to the suspended ceiling, silenced version for places that require a low noise level, EC type ebm‑papst fan, data is provided for the fan operating at three speeds at 2/6/10 V, galvanized steel casing with anti-condensation coating and sound-absorbing material, integrated condensate pump, G3 class air filter, RAL9003 white ABS plastic diffuser, heating capacity is calculated at 50°C water and 20°C air temperature, cooling capacity at 7/12°C water and 27°C air temperature, 2 pipe connection
	PS-CLES 2T 070/2R	1.43/3.46/4.77 kW heating capacity or 0.96/2.54/3.56 kW cooling capacity in 2 row heat exchanger, air flow 180/500/750 m³/h, sound pressure level 16/29/41 dB(A), max. fan power 34 W, ceiling hole 600x600xH250 mm, weight 18 kg, 2 year WARRANTY
		PS-CLES 2T 070/2R
		1.43/3.46/4.77 kW heating capacity or 0.96/2.54/3.56 kW cooling capacity in 2 row heat exchanger, air flow 180/500/750 m³/h, sound pressure level 16/29/41 dB(A), max. fan power 34 W, ceiling hole 600x600xH250 mm, weight 18 kg, 2 year WARRANTY
PS-CLES 2T 090/3R	1.66/4.20/5.90 kW heating capacity or 1.39/3.47/4.87 kW cooling capacity in 3 row heat exchanger, air flow 180/500/750 m³/h, sound pressure level 16/29/41 dB(A), max. fan power 34 W, ceiling hole 600x600xH250 mm, weight 19 kg, 2 year WARRANTY
	PS-CLES 2T 090/3R
	1.66/4.20/5.90 kW heating capacity or 1.39/3.47/4.87 kW cooling capacity in 3 row heat exchanger, air flow 180/500/750 m³/h, sound pressure level 16/29/41 dB(A), max. fan power 34 W, ceiling hole 600x600xH250 mm, weight 19 kg, 2 year WARRANTY
PS-CLES 2T 090/4R	1.75/4.66/6.71 kW heating capacity or 1.58/4.10/5.78 kW cooling capacity in 4 row heat exchanger, air flow 180/500/750 m³/h, sound pressure level 16/29/41 dB(A), max. fan power 34 W, ceiling hole 600x600xH250 mm, weight 19 kg, 2 year WARRANTY
	PS-CLES 2T 090/4R
	1.75/4.66/6.71 kW heating capacity or 1.58/4.10/5.78 kW cooling capacity in 4 row heat exchanger, air flow 180/500/750 m³/h, sound pressure level 16/29/41 dB(A), max. fan power 34 W, ceiling hole 600x600xH250 mm, weight 19 kg, 2 year WARRANTY
	PS-CLES 2T 150/3R	4.49/8.32/11.37 kW heating capacity or 4.06/7.33/9.84 kW cooling capacity in 3 row heat exchanger, air flow 480/940/1350 m³/h, sound pressure level 18/30/44 dB(A), max. fan power 65 W, ceiling hole 1200x600xH250 mm, weight 38 kg, delivered with auxiliary drain pan for valve, 2 year WARRANTY
		PS-CLES 2T 150/3R
4.49/8.32/11.37 kW heating capacity or 4.06/7.33/9.84 kW cooling capacity in 3 row heat exchanger, air flow 480/940/1350 m³/h, sound pressure level 18/30/44 dB(A), max. fan power 65 W, ceiling hole 1200x600xH250 mm, weight 38 kg, delivered with auxiliary drain pan for valve, 2 year WARRANTY
PS-CLES 2T 150/4R		4.73/9.11/12.63 kW heating capacity or 4.66/8.59/11.67 kW cooling capacity in 4 row heat exchanger, air flow 480/940/1350 m³/h, sound pressure level 18/30/44 dB(A), max. fan power 65 W, ceiling hole 1200x600xH250 mm, weight 38 kg, delivered with auxiliary drain pan for valve, 2 year WARRANTY
	PS-CLES 2T 150/4R
	4.73/9.11/12.63 kW heating capacity or 4.66/8.59/11.67 kW cooling capacity in 4 row heat exchanger, air flow 480/940/1350 m³/h, sound pressure level 18/30/44 dB(A), max. fan power 65 W, ceiling hole 1200x600xH250 mm, weight 38 kg, delivered with auxiliary drain pan for valve, 2 year WARRANTY
PS-CLES 4T - cassette, for mounting to the suspended ceiling, silenced version for places that require a low noise level, EC type ebm‑papst fan, data is provided for the fan operating at three speeds at 2/6/10 V, galvanized steel casing with anti-condensation coating and sound-absorbing material, integrated condensate pump, G3 class air filter, RAL9003 white ABS plastic diffuser, heating capacity is calculated at 50°C water and 20°C air temperature, cooling capacity at 7/12°C water and 27°C air temperature, 4 pipe connection
	PS-CLES 4T 094/2R+1	2.13/4.54/6.14 kW heating capacity in 1 row heat exchanger and 1.16/2.86/3.87 kW cooling capacity in 2 row heat exchanger, air flow 180/500/750 m³/h, sound pressure level 16/29/41 dB(A), max. fan power 34 W, ceiling hole 600x600xH250 mm, weight 19.5 kg, 2 year WARRANTY
		PS-CLES 4T 094/2R+1
2.13/4.54/6.14 kW heating capacity in 1 row heat exchanger and 1.16/2.86/3.87 kW cooling capacity in 2 row heat exchanger, air flow 180/500/750 m³/h, sound pressure level 16/29/41 dB(A), max. fan power 34 W, ceiling hole 600x600xH250 mm, weight 19.5 kg, 2 year WARRANTY
PS-CLES 4T 094/3R+1		2.13/4.54/6.14 kW heating capacity in 1 row heat exchanger and 1.49/3.68/5.06 kW cooling capacity in 3 row heat exchanger, air flow 180/500/750 m³/h, sound pressure level 16/29/41 dB(A), max. fan power 34 W, ceiling hole 600x600xH250 mm, weight 19.5 kg, 2 year WARRANTY
	PS-CLES 4T 094/3R+1
	2.13/4.54/6.14 kW heating capacity in 1 row heat exchanger and 1.49/3.68/5.06 kW cooling capacity in 3 row heat exchanger, air flow 180/500/750 m³/h, sound pressure level 16/29/41 dB(A), max. fan power 34 W, ceiling hole 600x600xH250 mm, weight 19.5 kg, 2 year WARRANTY
	PS-CLES 4T 154/2R+1	5.40/8.80/11.42 kW heating capacity in 1 row heat exchanger and 3.38/5.85/7.77 kW cooling capacity in 2 row heat exchanger, air flow 480/940/1350 m³/h, sound pressure level 18/30/44 dB(A), max. fan power 65 W, ceiling hole 1200x600xH250 mm, weight 39 kg, delivered with auxiliary drain pan for valve, 2 year WARRANTY
		PS-CLES 4T 154/2R+1
5.40/8.80/11.42 kW heating capacity in 1 row heat exchanger and 3.38/5.85/7.77 kW cooling capacity in 2 row heat exchanger, air flow 480/940/1350 m³/h, sound pressure level 18/30/44 dB(A), max. fan power 65 W, ceiling hole 1200x600xH250 mm, weight 39 kg, delivered with auxiliary drain pan for valve, 2 year WARRANTY
PS-CLES 4T 154/3R+1		5.40/8.79/11.42 kW heating capacity in 1 row heat exchanger and 4.03/7.22/9.69 kW cooling capacity in 3 row heat exchanger, air flow 480/940/1350 m³/h, sound pressure level 18/30/44 dB(A), max. fan power 65 W, ceiling hole 1200x600xH250 mm, weight 39 kg, delivered with auxiliary drain pan for valve, 2 year WARRANTY
	PS-CLES 4T 154/3R+1
	5.40/8.79/11.42 kW heating capacity in 1 row heat exchanger and 4.03/7.22/9.69 kW cooling capacity in 3 row heat exchanger, air flow 480/940/1350 m³/h, sound pressure level 18/30/44 dB(A), max. fan power 65 W, ceiling hole 1200x600xH250 mm, weight 39 kg, delivered with auxiliary drain pan for valve, 2 year WARRANTY

PS-CL / PS-CLE cassette fan coil units

Manuals 3.2 MB

Bukleti 2.3 MB

Katalogi 3.3 MB

Tehniskie dati 6 MB

PS-CLES silenced version of cassette fan coil units

Manuals 3.2 MB

Bukleti 2.1 MB

TEL wireless remote control panel

Manuals 254 KB

Fan coils controllers

Bukleti 8.1 MB

Modelis: PS-CLE 4T 094/2R+1

Control panels for fan coils
	TER.EC.ANA	Suitable for 2-pipe and 4-pipe units with EC fans, manual 3 steps fan speed selection, integrated thermostat, manual summer/winter mode, on/off valves control, possibility to connect remote air sensor SM, for use with PS-WLE, PS-FSE, PS-FLE/FLEF/FLEH, PS-CLE/CLES/CLEH, PS-UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DCE/HDCE units
	TER.EC.ANA
	Suitable for 2-pipe and 4-pipe units with EC fans, manual 3 steps fan speed selection, integrated thermostat, manual summer/winter mode, on/off valves control, possibility to connect remote air sensor SM, for use with PS-WLE, PS-FSE, PS-FLE/FLEF/FLEH, PS-CLE/CLES/CLEH, PS-UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DCE/HDCE units
	TER.EC.DIG	Suitable for 2-pipe and 4-pipe units with EC fans, LCD display, manual and automatic 3 steps fan speed selection, integrated thermostat, automatic summer/winter mode if used with optional SM sensor, possibility to remotely turn device on/off, possibility to control additional electric heater, on/off valves control, 0-10V modulating valves control, possibility to connect remote air sensor SM, possibility to connect supply hot water detection temperature sensor TM, for use with PS-WLE, PS-FSE, PS-FLE/FLEF/FLEH, PS-CLE/CLES/CLEH, PS-UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DCE/HDCE units
	TER.EC.DIG
	Suitable for 2-pipe and 4-pipe units with EC fans, LCD display, manual and automatic 3 steps fan speed selection, integrated thermostat, automatic summer/winter mode if used with optional SM sensor, possibility to remotely turn device on/off, possibility to control additional electric heater, on/off valves control, 0-10V modulating valves control, possibility to connect remote air sensor SM, possibility to connect supply hot water detection temperature sensor TM, for use with PS-WLE, PS-FSE, PS-FLE/FLEF/FLEH, PS-CLE/CLES/CLEH, PS-UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DCE/HDCE units
	TER.EC.BUS	Suitable for 2-pipe and 4-pipe units with EC fans, LCD display, manual and automatic 3 steps fan speed selection, integrated thermostat, automatic summer/winter mode if used with optional TM sensor, programmable weekly calendar, possibility to remotely turn device on/off, possibility to control additional electric heater, on/off valves control, 0-10V modulating valves control, possibility to connect remote air sensor SM, possibility to connect supply hot water detection temperature sensor TM, RS485 connection to BMS via Modbus RTU protocol, for use with PS-WLE, PS-FSE, PS-FLE/FLEF/FLEH, PS-CLE/CLES/CLEH, PS-UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DCE/HDCE units
		TER.EC.BUS
Suitable for 2-pipe and 4-pipe units with EC fans, LCD display, manual and automatic 3 steps fan speed selection, integrated thermostat, automatic summer/winter mode if used with optional TM sensor, programmable weekly calendar, possibility to remotely turn device on/off, possibility to control additional electric heater, on/off valves control, 0-10V modulating valves control, possibility to connect remote air sensor SM, possibility to connect supply hot water detection temperature sensor TM, RS485 connection to BMS via Modbus RTU protocol, for use with PS-WLE, PS-FSE, PS-FLE/FLEF/FLEH, PS-CLE/CLES/CLEH, PS-UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DCE/HDCE units
TER.EC.BAC		Suitable for 2-pipe and 4-pipe units with EC fans, LCD display, manual and automatic 3 steps fan speed selection, integrated thermostat, automatic summer/winter mode if used with optional TM sensor, programmable weekly calendar, possibility to remotely turn device on/off, possibility to control additional electric heater, on/off valves control, 0-10V modulating valves control, possibility to connect remote air sensor SM, possibility to connect supply hot water detection temperature sensor TM, RS485 connection to BMS via BACnet MS/TP protocol, for use with PS-FSE, PS-FLE/FLEF/FLEH, PS-CLE/CLES/CLEH, PS-UWLE/UWLEF/UWLEV/UWLES, PS-DCE/HDCE units
	TER.EC.BAC
	Suitable for 2-pipe and 4-pipe units with EC fans, LCD display, manual and automatic 3 steps fan speed selection, integrated thermostat, automatic summer/winter mode if used with optional TM sensor, programmable weekly calendar, possibility to remotely turn device on/off, possibility to control additional electric heater, on/off valves control, 0-10V modulating valves control, possibility to connect remote air sensor SM, possibility to connect supply hot water detection temperature sensor TM, RS485 connection to BMS via BACnet MS/TP protocol, for use with PS-FSE, PS-FLE/FLEF/FLEH, PS-CLE/CLES/CLEH, PS-UWLE/UWLEF/UWLEV/UWLES, PS-DCE/HDCE units
	TEL	Wireless, suitable for 2-pipe and 4-pipe units, LCD display, manual and automatic 3 steps fan speed selection, manual summer/winter mode, on/off valves control, possibility to connect supply hot water detection temperature sensor TM, for use with PS-CL/CLE/CLES/CLH/CLEH, PS-UWL/UWLF/UWLV/UWLE/UWLEF/UWLEV/UWLES, PS-DC/DCE/HDC/HDCE units, required to use together with KIT.TEL or KIT.TEL.EC accessory
	TEL
	Wireless, suitable for 2-pipe and 4-pipe units, LCD display, manual and automatic 3 steps fan speed selection, manual summer/winter mode, on/off valves control, possibility to connect supply hot water detection temperature sensor TM, for use with PS-CL/CLE/CLES/CLH/CLEH, PS-UWL/UWLF/UWLV/UWLE/UWLEF/UWLEV/UWLES, PS-DC/DCE/HDC/HDCE units, required to use together with KIT.TEL or KIT.TEL.EC accessory
Accessories for fan coils controls
	KIT.TEL.EC	Wireless control panel signal receiver and PCB together with temperature probe, for installation inside fan coil unit with EC type fan, fits to PS-CLE/CLES/CLEH, PS-UWLE/UWLEF/UWLEV/UWLES, PS-DCE/HDCE units
	KIT.TEL.EC
	Wireless control panel signal receiver and PCB together with temperature probe, for installation inside fan coil unit with EC type fan, fits to PS-CLE/CLES/CLEH, PS-UWLE/UWLEF/UWLEV/UWLES, PS-DCE/HDCE units
	KIT.BUS	Electronic board for PS-CL/CLE/CLES/CLH/CLEH, PS-UWL/UWLF/UWLV/UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DC/DCE/HDC/HDCE fan coil units connection to BMS via Mod-Bus protocol, delivered with air temperature probe
	KIT.BUS
	Electronic board for PS-CL/CLE/CLES/CLH/CLEH, PS-UWL/UWLF/UWLV/UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DC/DCE/HDC/HDCE fan coil units connection to BMS via Mod-Bus protocol, delivered with air temperature probe
	DIS.BUS	Information screen to display data from device controlled via KIT.BUS electronic board
	DIS.BUS
	Information screen to display data from device controlled via KIT.BUS electronic board
	TM	Supply hot water detection (35°C) temperature sensor for turning on fan coil unit in heating mode only when hot water is flowing, to be used with units without valve or with 3-way valve, usable with TER.ANA.S / TER.ANA.S.M / TER.DIG.S / TER.EC.DIG / TER.EC.DIG.M / TER.BUS / TER.BUS.M / TER.BAC / TER.BAC.M / TER.EC.BUS / TER.EC.BUS.M / TER.EC.BAC / TEL control panels
	TM
	Supply hot water detection (35°C) temperature sensor for turning on fan coil unit in heating mode only when hot water is flowing, to be used with units without valve or with 3-way valve, usable with TER.ANA.S / TER.ANA.S.M / TER.DIG.S / TER.EC.DIG / TER.EC.DIG.M / TER.BUS / TER.BUS.M / TER.BAC / TER.BAC.M / TER.EC.BUS / TER.EC.BUS.M / TER.EC.BAC / TEL control panels
Water valves
	ATT.230	On/Off actuator for water valve, powered by 230 V
		ATT.230
On/Off actuator for water valve, powered by 230 V
ATT.230.M		On/Off actuator for water valve, powered by 230 V, with limit switch
	ATT.230.M
	On/Off actuator for water valve, powered by 230 V, with limit switch
	ATT.MOD	Modulating by 0-10 V signal actuator for water valve
	ATT.MOD
	Modulating by 0-10 V signal actuator for water valve
	VAL.2V.34.CL	2-way water valve for PS-CL/CLE/CLES/CLH/CLEH fan coil units, 3/4" connection
	VAL.2V.34.CL
	2-way water valve for PS-CL/CLE/CLES/CLH/CLEH fan coil units, 3/4" connection
	VAL.3V.34.CL	3-way water valve for PS-CL/CLE/CLES/CLH/CLEH fan coil units, 3/4" connection
	VAL.3V.34.CL
	3-way water valve for PS-CL/CLE/CLES/CLH/CLEH fan coil units, 3/4" connection
	VAL.34.DIN.CL	Balancing water valve for PS-CL/CLE/CLES/CLH/CLEH fan coil units, 3/4" connection
	VAL.34.DIN.CL
	Balancing water valve for PS-CL/CLE/CLES/CLH/CLEH fan coil units, 3/4" connection
Condensate collection trays
	BAC.VAL1	Auxiliary drain pan for valve of 050 - 094 size PS-CL/CLE/CLES/CLH/CLEH fan coil units
	BAC.VAL1
	Auxiliary drain pan for valve of 050 - 094 size PS-CL/CLE/CLES/CLH/CLEH fan coil units
Diffusers
	PAN.MET.050	Metal diffuser with Coanda effect for 050 - 094 size PS-CL/CLE/CLES/CLH/CLEH fan coil units, RAL9003 spalva
	PAN.MET.050
	Metal diffuser with Coanda effect for 050 - 094 size PS-CL/CLE/CLES/CLH/CLEH fan coil units, RAL9003 spalva
Air filters
	FILTRO G4	G4 class air filter for PS-CL/CLE/CLES/CLH/CLEH fan coil units with PAN.MET.050 / PAN.MET.100 metal diffuser
	FILTRO G4
	G4 class air filter for PS-CL/CLE/CLES/CLH/CLEH fan coil units with PAN.MET.050 / PAN.MET.100 metal diffuser
Additional accessories for fan coils air inlet and outlet
	FL.RIN	Fresh air inlet flange for PS-CL/CLE/CLES/CLH/CLEH fan coil units
		FL.RIN
Fresh air inlet flange for PS-CL/CLE/CLES/CLH/CLEH fan coil units
FL.AIR		Flange for air supply to the adjacent room, fits PS-CL/CLE/CLES/CLH/CLEH fan coil units
	FL.AIR
	Flange for air supply to the adjacent room, fits PS-CL/CLE/CLES/CLH/CLEH fan coil units
Outer casings
	KIT.COV.050	Metal outer casing for 050 - 094 size PS-CL/CLE/CLES fan coil units, painted in RAL9003 color
	KIT.COV.050
	Metal outer casing for 050 - 094 size PS-CL/CLE/CLES fan coil units, painted in RAL9003 color
Electric heating elements
	KIT.RES.050	1.5 kW power electric heating element for 050 - 094 size PS-CL/CLE/CLES/CLH/CLEH fan coil units
	KIT.RES.050
	1.5 kW power electric heating element for 050 - 094 size PS-CL/CLE/CLES/CLH/CLEH fan coil units
Painting in non-standard colors
	PAN.RAL.050	Painting of ABS plastic diffuser in non-standard RAL color for 050 - 094 size PS-CL/CLE/CLES/CLH/CLEH fan coil units
		PAN.RAL.050
Painting of ABS plastic diffuser in non-standard RAL color for 050 - 094 size PS-CL/CLE/CLES/CLH/CLEH fan coil units
PAN.MET.RAL.050		Painting of metal diffuser in non-standard RAL color for 050 - 094 size PS-CL/CLE/CLES/CLH/CLEH fan coil units
	PAN.MET.RAL.050
	Painting of metal diffuser in non-standard RAL color for 050 - 094 size PS-CL/CLE/CLES/CLH/CLEH fan coil units
