Fan coil - PS-UWLED 050/4R | PST Clima

Izvēlieties produkta veidu un modeli:

Fan coil, without casing, for horizontal concealed mounting inside ceiling, frontal air inlet and outlet via double GRDF aluminum grille (should be ordered seperately), EC type centrifugal fan, data is provided for the fan operating at three speeds at 2/6/10 V, galvanized steel frame with anti-condensation coating and sound-absorbing material, delivered with condensate drain pan, heating capacity is calculated at 50°C water and 20°C air temperature, cooling capacity at 7/12°C water and 27°C air temperature, 2 pipe connection, 1.91/2.64/3.27 kW heating capacity or 0.99/1.56/2.18 kW cooling capacity in 4 row heat exchanger, air flow 199/312/488 m³/h, sound pressure level 24/30/36 dB(A), max. fan power 45 W, dimensions with adjustable length telescopic grille nozzle 650x780-810xH250 mm, weight 22 kg, 2 year WARRANTY
Vai jūs interesē šis produkts? Sazinieties ar mums:

Andrius Lekarevičius

LT, RU, EN
+370 606 11865

Latvijas tirdzniecības pārstāvja vietnieks Saņemt piedāvājumu
Noklikšķiniet uz modeļa: parādīsies tehniskā informācija, izmēri, piederumi
PS-UWLED 2T - without casing, for horizontal concealed mounting inside ceiling, frontal air inlet and outlet via double GRDF aluminum grille (should be ordered seperately), EC type centrifugal fan, data is provided for the fan operating at three speeds at 2/6/10 V, galvanized steel frame with anti-condensation coating and sound-absorbing material, delivered with condensate drain pan, heating capacity is calculated at 50°C water and 20°C air temperature, cooling capacity at 7/12°C water and 27°C air temperature, 2 pipe connection
PS-UWLED 050/4R 1.91/2.64/3.27 kW heating capacity or 0.99/1.56/2.18 kW cooling capacity in 4 row heat exchanger, air flow 199/312/488 m³/h, sound pressure level 24/30/36 dB(A), max. fan power 45 W, dimensions with adjustable length telescopic grille nozzle 650x780-810xH250 mm, weight 22 kg, 2 year WARRANTY
PS-UWLED 050/4R
1.91/2.64/3.27 kW heating capacity or 0.99/1.56/2.18 kW cooling capacity in 4 row heat exchanger, air flow 199/312/488 m³/h, sound pressure level 24/30/36 dB(A), max. fan power 45 W, dimensions with adjustable length telescopic grille nozzle 650x780-810xH250 mm, weight 22 kg, 2 year WARRANTY
PS-UWLED 080/4R 2.87/3.97/4.91 kW heating capacity or 1.80/2.81/3.47 kW cooling capacity in 4 row heat exchanger, air flow 281/502/785 m³/h, sound pressure level 26/32/38 dB(A), max. fan power 55 W, dimensions with adjustable length telescopic grille nozzle 950x780-810xH250 mm, weight 31 kg, 2 year WARRANTY
PS-UWLED 080/4R
2.87/3.97/4.91 kW heating capacity or 1.80/2.81/3.47 kW cooling capacity in 4 row heat exchanger, air flow 281/502/785 m³/h, sound pressure level 26/32/38 dB(A), max. fan power 55 W, dimensions with adjustable length telescopic grille nozzle 950x780-810xH250 mm, weight 31 kg, 2 year WARRANTY
PS-UWLED 4T - without casing, for horizontal concealed mounting inside ceiling, frontal air inlet and outlet via double GRDF aluminum grille (should be ordered seperately), EC type centrifugal fan, data is provided for the fan operating at three speeds at 2/6/10 V, galvanized steel frame with anti-condensation coating and sound-absorbing material, delivered with condensate drain pan, heating capacity is calculated at 70/60°C water and 20°C air temperature, cooling capacity at 7/12°C water and 27°C air temperature, 4 pipe connection
PS-UWLED 054/4+1R 1.21/1.68/2.08 kW heating capacity in 1 row heat exchanger and 0.99/1.56/2.18 kW cooling capacity in 4 row heat exchanger, air flow 199/312/488 m³/h, sound pressure level 24/30/36 dB(A), max. fan power 45 W, dimensions with adjustable length telescopic grille nozzle 650x780-810xH250 mm, weight 23 kg, 2 year WARRANTY
PS-UWLED 054/4+1R
1.21/1.68/2.08 kW heating capacity in 1 row heat exchanger and 0.99/1.56/2.18 kW cooling capacity in 4 row heat exchanger, air flow 199/312/488 m³/h, sound pressure level 24/30/36 dB(A), max. fan power 45 W, dimensions with adjustable length telescopic grille nozzle 650x780-810xH250 mm, weight 23 kg, 2 year WARRANTY
PS-UWLED 084/4+1R 1.89/2.62/3.23 kW heating capacity in 1 row heat exchanger and 1.80/2.81/3.47 kW cooling capacity in 4 row heat exchanger, air flow 281/502/785 m³/h, sound pressure level 26/32/38 dB(A), max. fan power 55 W, dimensions with adjustable length telescopic grille nozzle 950x780-810xH250 mm, weight 32 kg, 2 year WARRANTY
PS-UWLED 084/4+1R
1.89/2.62/3.23 kW heating capacity in 1 row heat exchanger and 1.80/2.81/3.47 kW cooling capacity in 4 row heat exchanger, air flow 281/502/785 m³/h, sound pressure level 26/32/38 dB(A), max. fan power 55 W, dimensions with adjustable length telescopic grille nozzle 950x780-810xH250 mm, weight 32 kg, 2 year WARRANTY

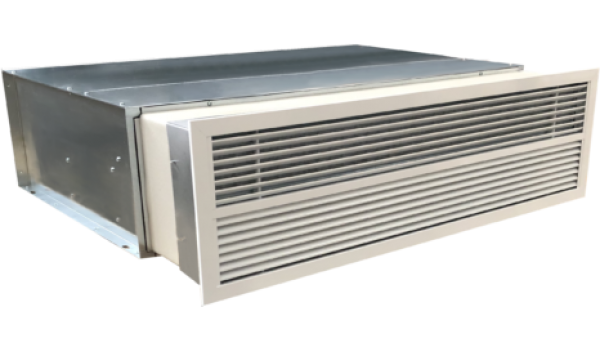

PS-UWLED concealed fan coil units with double air inlet / outlet grille
Manuals 481 KB
Bukleti 816 KB
Katalogi 8.5 MB
Tehniskie dati 1.4 MB
Fan coils controllers
Bukleti 8.1 MB
Modelis: PS-UWLED 050/4R
GRDF double aluminum grille for PS-UWLED fan coil units
GRDF.050 Double air inlet and outlet aluminum grille for 050 / 054 size PS-UWLED fan coil units, painted in RAL9010 color, with easily replaceable G3 class air filter, dimensions 250x600 mm
GRDF.050
Double air inlet and outlet aluminum grille for 050 / 054 size PS-UWLED fan coil units, painted in RAL9010 color, with easily replaceable G3 class air filter, dimensions 250x600 mm
Control panels for fan coils
TER.EC.ANA Suitable for 2-pipe and 4-pipe units with EC fans, manual 3 steps fan speed selection, integrated thermostat, manual summer/winter mode, on/off valves control, possibility to connect remote air sensor SM, for use with PS-WLE, PS-FSE, PS-FLE/FLEF/FLEH, PS-CLE/CLES/CLEH, PS-UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DCE/HDCE units
TER.EC.ANA
Suitable for 2-pipe and 4-pipe units with EC fans, manual 3 steps fan speed selection, integrated thermostat, manual summer/winter mode, on/off valves control, possibility to connect remote air sensor SM, for use with PS-WLE, PS-FSE, PS-FLE/FLEF/FLEH, PS-CLE/CLES/CLEH, PS-UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DCE/HDCE units
TER.EC.DIG Suitable for 2-pipe and 4-pipe units with EC fans, LCD display, manual and automatic 3 steps fan speed selection, integrated thermostat, automatic summer/winter mode if used with optional SM sensor, possibility to remotely turn device on/off, possibility to control additional electric heater, on/off valves control, 0-10V modulating valves control, possibility to connect remote air sensor SM, possibility to connect supply hot water detection temperature sensor TM, for use with PS-WLE, PS-FSE, PS-FLE/FLEF/FLEH, PS-CLE/CLES/CLEH, PS-UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DCE/HDCE units
TER.EC.DIG
Suitable for 2-pipe and 4-pipe units with EC fans, LCD display, manual and automatic 3 steps fan speed selection, integrated thermostat, automatic summer/winter mode if used with optional SM sensor, possibility to remotely turn device on/off, possibility to control additional electric heater, on/off valves control, 0-10V modulating valves control, possibility to connect remote air sensor SM, possibility to connect supply hot water detection temperature sensor TM, for use with PS-WLE, PS-FSE, PS-FLE/FLEF/FLEH, PS-CLE/CLES/CLEH, PS-UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DCE/HDCE units
TER.EC.BUS Suitable for 2-pipe and 4-pipe units with EC fans, LCD display, manual and automatic 3 steps fan speed selection, integrated thermostat, automatic summer/winter mode if used with optional TM sensor, programmable weekly calendar, possibility to remotely turn device on/off, possibility to control additional electric heater, on/off valves control, 0-10V modulating valves control, possibility to connect remote air sensor SM, possibility to connect supply hot water detection temperature sensor TM, RS485 connection to BMS via Modbus RTU protocol, for use with PS-WLE, PS-FSE, PS-FLE/FLEF/FLEH, PS-CLE/CLES/CLEH, PS-UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DCE/HDCE units
TER.EC.BUS
Suitable for 2-pipe and 4-pipe units with EC fans, LCD display, manual and automatic 3 steps fan speed selection, integrated thermostat, automatic summer/winter mode if used with optional TM sensor, programmable weekly calendar, possibility to remotely turn device on/off, possibility to control additional electric heater, on/off valves control, 0-10V modulating valves control, possibility to connect remote air sensor SM, possibility to connect supply hot water detection temperature sensor TM, RS485 connection to BMS via Modbus RTU protocol, for use with PS-WLE, PS-FSE, PS-FLE/FLEF/FLEH, PS-CLE/CLES/CLEH, PS-UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DCE/HDCE units
TER.EC.TOUCH Suitable for 2-pipe units with EC fans, touch screen, manual and automatic 3 steps fan speed selection, integrated thermostat, manual summer/winter mode, programmable weekly calendar, on/off valves control, possibility to connect remote air sensor SM, Wi-Fi connection for possibility to control the device remotely through the app for smart Android / IOS devices, for use with PS-WLE, PS-FSE, PS-FLE/FLEF/FLEH 2T, PS-CLE/CLES/CLEH 2T, PS-UWLE/UWLEF/UWLEV/UWLES/UWLED 2T, PS-DCE/HDCE 2T units
TER.EC.TOUCH
Suitable for 2-pipe units with EC fans, touch screen, manual and automatic 3 steps fan speed selection, integrated thermostat, manual summer/winter mode, programmable weekly calendar, on/off valves control, possibility to connect remote air sensor SM, Wi-Fi connection for possibility to control the device remotely through the app for smart Android / IOS devices, for use with PS-WLE, PS-FSE, PS-FLE/FLEF/FLEH 2T, PS-CLE/CLES/CLEH 2T, PS-UWLE/UWLEF/UWLEV/UWLES/UWLED 2T, PS-DCE/HDCE 2T units
Accessories for fan coils controls
KIT.WI-FI.EC Electronic board for remote control of PS-FSE, PS-FLE/FLEF/FLEH, PS-UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DCE/HDCE fan coil units with EC type fan via Wi-Fi connection and app for smart Android / IOS devices, delivered with air temperature probe
KIT.WI-FI.EC
Electronic board for remote control of PS-FSE, PS-FLE/FLEF/FLEH, PS-UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DCE/HDCE fan coil units with EC type fan via Wi-Fi connection and app for smart Android / IOS devices, delivered with air temperature probe
KIT.BUS Electronic board for PS-CL/CLE/CLES/CLH/CLEH, PS-UWL/UWLF/UWLV/UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DC/DCE/HDC/HDCE fan coil units connection to BMS via Mod-Bus protocol, delivered with air temperature probe
KIT.BUS
Electronic board for PS-CL/CLE/CLES/CLH/CLEH, PS-UWL/UWLF/UWLV/UWLE/UWLEF/UWLEV/UWLES/UWLED, PS-DC/DCE/HDC/HDCE fan coil units connection to BMS via Mod-Bus protocol, delivered with air temperature probe
DIS.BUS Information screen to display data from device controlled via KIT.BUS electronic board
DIS.BUS
Information screen to display data from device controlled via KIT.BUS electronic board
SM Temperature sensor for automatic summer/winter mode change-over in TER.DIG.S / TER.EC.DIG control panels (to be used with units without valve or with 3-way valve), it also can be used as a remote air temperature sensor for TER.ANA(.M) / TER.ANA.S(.M) / TER.EC.ANA(.M) / TER.DIG(.M) / TER.DIG.S / TER.EC.DIG(.M) / TER.BUS(.M) / TER.BAC(.M) / TER.EC.BUS(.M) / TER.EC.BAC / TER.TOUCH(.M) / TER.EC.TOUCH(.M) control panels
SM
Temperature sensor for automatic summer/winter mode change-over in TER.DIG.S / TER.EC.DIG control panels (to be used with units without valve or with 3-way valve), it also can be used as a remote air temperature sensor for TER.ANA(.M) / TER.ANA.S(.M) / TER.EC.ANA(.M) / TER.DIG(.M) / TER.DIG.S / TER.EC.DIG(.M) / TER.BUS(.M) / TER.BAC(.M) / TER.EC.BUS(.M) / TER.EC.BAC / TER.TOUCH(.M) / TER.EC.TOUCH(.M) control panels
TM Supply hot water detection (35°C) temperature sensor for turning on fan coil unit in heating mode only when hot water is flowing, to be used with units without valve or with 3-way valve, usable with TER.ANA.S / TER.ANA.S.M / TER.DIG.S / TER.EC.DIG / TER.EC.DIG.M / TER.BUS / TER.BUS.M / TER.BAC / TER.BAC.M / TER.EC.BUS / TER.EC.BUS.M / TER.EC.BAC / TEL control panels
TM
Supply hot water detection (35°C) temperature sensor for turning on fan coil unit in heating mode only when hot water is flowing, to be used with units without valve or with 3-way valve, usable with TER.ANA.S / TER.ANA.S.M / TER.DIG.S / TER.EC.DIG / TER.EC.DIG.M / TER.BUS / TER.BUS.M / TER.BAC / TER.BAC.M / TER.EC.BUS / TER.EC.BUS.M / TER.EC.BAC / TEL control panels
Water valves
ATT.230 On/Off actuator for water valve, powered by 230 V
ATT.230
On/Off actuator for water valve, powered by 230 V
ATT.230.M On/Off actuator for water valve, powered by 230 V, with limit switch
ATT.230.M
On/Off actuator for water valve, powered by 230 V, with limit switch
ATT.MOD Modulating by 0-10 V signal actuator for water valve
ATT.MOD
Modulating by 0-10 V signal actuator for water valve
VAL.2V.12.UWLD 2-way water valve for PS-UWLED fan coil units, 1/2" connection
VAL.2V.12.UWLD
2-way water valve for PS-UWLED fan coil units, 1/2" connection
VAL.3V.12.UWLD 3-way water valve for PS-UWLED fan coil units, 1/2" connection
VAL.3V.12.UWLD
3-way water valve for PS-UWLED fan coil units, 1/2" connection
VAL.12.DIN.UWLD Balancing water valve for PS-UWLED fan coil units, 1/2" connection
VAL.12.DIN.UWLD
Balancing water valve for PS-UWLED fan coil units, 1/2" connection
Condensate drain pumps
POM.CON.20 Condensate drain pump for PS-WLE, PS-FL/FLF/FLH/FLE/FLEF/FLEH, PS-UWLED, PS-DC/DCE/HDC/HDCE fan coil units, flow rate 20 l/h
POM.CON.20
Condensate drain pump for PS-WLE, PS-FL/FLF/FLH/FLE/FLEF/FLEH, PS-UWLED, PS-DC/DCE/HDC/HDCE fan coil units, flow rate 20 l/h
Antibacterial UV LED lamps
LAM.UV.LED.050.UWLD Antibacterial UV-C LED lamp for 050 / 054 size PS-UWLED fan coil units
LAM.UV.LED.050.UWLD
Antibacterial UV-C LED lamp for 050 / 054 size PS-UWLED fan coil units
Painting in non-standard colors
GRM-V-UWLED Painting of GRDF air inlet / outlet grille in non-standard RAL color
GRM-V-UWLED
Painting of GRDF air inlet / outlet grille in non-standard RAL color
